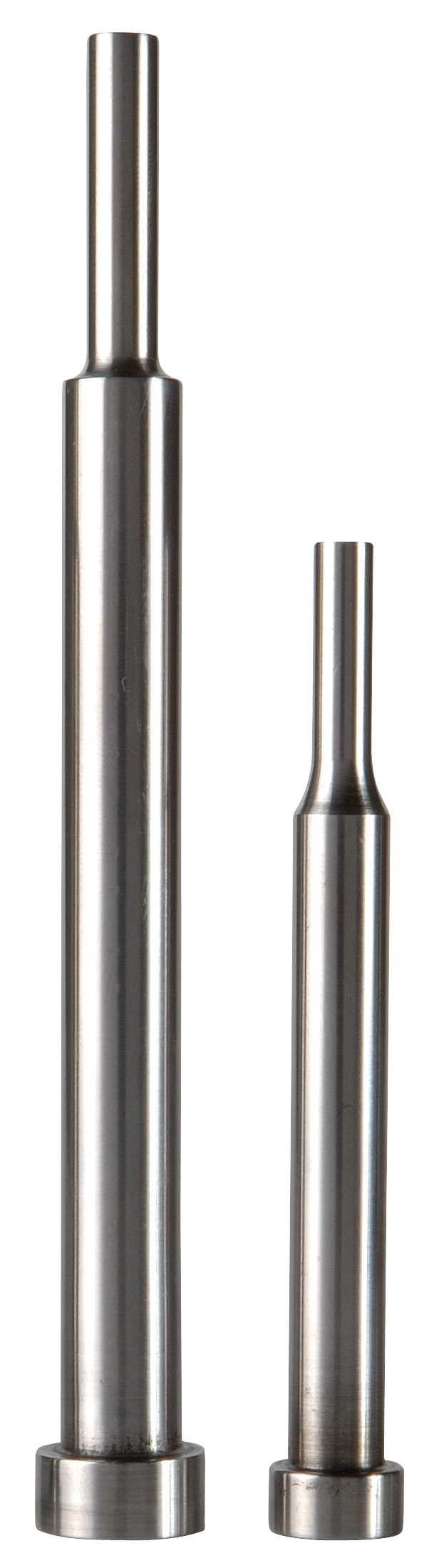

PUNÇÃO DE CABEÇA CILÍNDRICA EM DIÂMETRO COM REBAIXO - ISO 8020 (PARCIAL)
Desenho 3D CÓDIGO D1 DC K C2 C
- PNID0507110-RBrb 5 8 5 10 71
- PNID0507113-RBrb 5 8 5 13 71
- PNID0507116-RBrb 5 8 5 16 71
- PNID0507120-RBrb 5 8 5 20 71
- PNID0507125-RBrb 5 8 5 25 71
- PNID0508010-RBrb 5 8 5 10 80
- PNID0508013-RBrb 5 8 5 13 80
- PNID0508016-RBrb 5 8 5 16 80
- PNID0508020-RBrb 5 8 5 20 80
- PNID0508025-RBrb 5 8 5 25 80
- PNID0510010-RBrb 5 8 5 10 100
- PNID0510013-RBrb 5 8 5 13 100
- PNID0510016-RBrb 5 8 5 16 100
- PNID0510020-RBrb 5 8 5 20 100
- PNID0510025-RBrb 5 8 5 25 100
- PNID0512010-RBrb 5 8 5 10 120
- PNID0512013-RBrb 5 8 5 13 120
- PNID0512016-RBrb 5 8 5 16 120
- PNID0512020-RBrb 5 8 5 20 120
- PNID0512025-RBrb 5 8 5 25 120
- PNID0607110-RBrb 6 9 5 10 71
- PNID0607113-RBrb 6 9 5 13 71
- PNID0607116-RBrb 6 9 5 16 71
- PNID0607120-RBrb 6 9 5 20 71
- PNID0607125-RBrb 6 9 5 25 71
- PNID0608010-RBrb 6 9 5 10 80
- PNID0608013-RBrb 6 9 5 13 80
- PNID0608016-RBrb 6 9 5 16 80
- PNID0608020-RBrb 6 9 5 20 80
- PNID0608025-RBrb 6 9 5 25 80
- PNID0610010-RBrb 6 9 5 10 100
- PNID0610013-RBrb 6 9 5 13 100
- PNID0610016-RBrb 6 9 5 16 100
- PNID0610020-RBrb 6 9 5 20 100
- PNID0610025-RBrb 6 9 5 25 100
- PNID0612010-RBrb 6 9 5 10 120
- PNID0612013-RBrb 6 9 5 13 120
- PNID0612016-RBrb 6 9 5 16 120
- PNID0612020-RBrb 6 9 5 20 120
- PNID0612025-RBrb 6 9 5 25 120
- PNID0707110-RBrb 7 10 5 10 71
- PNID0707113-RBrb 7 10 5 13 71
- PNID0707116-RBrb 7 10 5 16 71
- PNID0707120-RBrb 7 10 5 20 71
- PNID0707125-RBrb 7 10 5 25 71
- PNID0708010-RBrb 7 10 5 10 80
- PNID0708013-RBrb 7 10 5 13 80
- PNID0708016-RBrb 7 10 5 16 80
- PNID0708020-RBrb 7 10 5 20 80
- PNID0708025-RBrb 7 10 5 25 80
- PNID0710010-RBrb 7 10 5 10 100
- PNID0710013-RBrb 7 10 5 13 100
- PNID0710016-RBrb 7 10 5 16 100
- PNID0710020-RBrb 7 10 5 20 100
- PNID0710025-RBrb 7 10 5 25 100
- PNID0712010-RBrb 7 10 5 10 120
- PNID0712013-RBrb 7 10 5 13 120
- PNID0712016-RBrb 7 10 5 16 120
- PNID0712020-RBrb 7 10 5 20 120
- PNID0712025-RBrb 7 10 5 25 120
- PNID0807110-RBrb 8 11 5 10 71
- PNID0807113-RBrb 8 11 5 13 71
- PNID0807116-RBrb 8 11 5 16 71
- PNID0807120-RBrb 8 11 5 20 71
- PNID0807125-RBrb 8 11 5 25 71
- PNID0808010-RBrb 8 11 5 10 80
- PNID0808013-RBrb 8 11 5 13 80
- PNID0808016-RBrb 8 11 5 16 80
- PNID0808020-RBrb 8 11 5 20 80
- PNID0808025-RBrb 8 11 5 25 80
- PNID0810010-RBrb 8 11 5 10 100
- PNID0810013-RBrb 8 11 5 13 100
- PNID0810016-RBrb 8 11 5 16 100
- PNID0810020-RBrb 8 11 5 20 100
- PNID0810025-RBrb 8 11 5 25 100
- PNID0812010-RBrb 8 11 5 10 120
- PNID0812013-RBrb 8 11 5 13 120
- PNID0812016-RBrb 8 11 5 16 120
- PNID0812020-RBrb 8 11 5 20 120
- PNID0812025-RBrb 8 11 5 25 120
- PNID0907110-RBrb 9 12 5 10 71
- PNID0907113-RBrb 9 12 5 13 71
- PNID0907116-RBrb 9 12 5 16 71
- PNID0907120-RBrb 9 12 5 20 71
- PNID0907125-RBrb 9 12 5 25 71
- PNID0908010-RBrb 9 12 5 10 80
- PNID0908013-RBrb 9 12 5 13 80
- PNID0908016-RBrb 9 12 5 16 80
- PNID0908020-RBrb 9 12 5 20 80
- PNID0908025-RBrb 9 12 5 25 80
- PNID0910010-RBrb 9 12 5 10 100
- PNID0910013-RBrb 9 12 5 13 100
- PNID0910016-RBrb 9 12 5 16 100
- PNID0910020-RBrb 9 12 5 20 100
- PNID0910025-RBrb 9 12 5 25 100
- PNID0912010-RBrb 9 12 5 10 120
- PNID0912013-RBrb 9 12 5 13 120
- PNID0912016-RBrb 9 12 5 16 120
- PNID0912020-RBrb 9 12 5 20 120
- PNID0912025-RBrb 9 12 5 25 120
- PNID1007110-RBrb 10 13 5 10 71
- PNID1007116-RBrb 10 13 5 16 71
- PNID1007120-RBrb 10 13 5 20 71
- PNID1007125-RBrb 10 13 5 25 71
- PNID1008010-RBrb 10 13 5 10 80
- PNID1008016-RBrb 10 13 5 16 80
- PNID1008020-RBrb 10 13 5 20 80
- PNID1008025-RBrb 10 13 5 25 80
- PNID1010010-RBrb 10 13 5 10 100
- PNID1010016-RBrb 10 13 5 16 100
- PNID1010020-RBrb 10 13 5 20 100
- PNID1010025-RBrb 10 13 5 25 100
- PNID1012010-RBrb 10 13 5 10 120
- PNID1012016-RBrb 10 13 5 16 120
- PNID1012020-RBrb 10 13 5 20 120
- PNID1012025-RBrb 10 13 5 25 120
- PNID1107110-RBrb 11 14 5 10 71
- PNID1107113-RBrb 11 14 5 13 71
- PNID1107116-RBrb 11 14 5 16 71
- PNID1107120-RBrb 11 14 5 20 71
- PNID1107125-RBrb 11 14 5 25 71
- PNID1108010-RBrb 11 14 5 10 80
- PNID1108013-RBrb 11 14 5 13 80
- PNID1108016-RBrb 11 14 5 16 80
- PNID1108020-RBrb 11 14 5 20 80
- PNID1108025-RBrb 11 14 5 25 80
- PNID1110010-RBrb 11 14 5 10 100
- PNID1110013-RBrb 11 14 5 13 100
- PNID1110016-RBrb 11 14 5 16 100
- PNID1110020-RBrb 11 14 5 20 100
- PNID1110025-RBrb 11 14 5 25 100
- PNID1112010-RBrb 11 14 5 10 120
- PNID1112013-RBrb 11 14 5 13 120
- PNID1112016-RBrb 11 14 5 16 120
- PNID1112020-RBrb 11 14 5 20 120
- PNID1112025-RBrb 11 14 5 25 120
- PNID1207110-RBrb 12 15 5 10 71
- PNID1207113-RBrb 12 15 5 13 71
- PNID1207116-RBrb 12 15 5 16 71
- PNID1207120-RBrb 12 15 5 20 71
- PNID1207125-RBrb 12 15 5 25 71
- PNID1208010-RBrb 12 15 5 10 80
- PNID1208013-RBrb 12 15 5 13 80
- PNID1208016-RBrb 12 15 5 16 80
- PNID1208020-RBrb 12 15 5 20 80
- PNID1208025-RBrb 12 15 5 25 80
- PNID1210010-RBrb 12 15 5 10 100
- PNID1210013-RBrb 12 15 5 13 100
- PNID1210016-RBrb 12 15 5 16 100
- PNID1210020-RBrb 12 15 5 20 100
- PNID1210025-RBrb 12 15 5 25 100
- PNID1212010-RBrb 12 15 5 10 120
- PNID1212013-RBrb 12 15 5 13 120
- PNID1212016-RBrb 12 15 5 16 120
- PNID1212020-RBrb 12 15 5 20 120
- PNID1212025-RBrb 12 15 5 25 120
- PNID1307110-RBrb 13 16 5 10 71
- PNID1307113-RBrb 13 16 5 13 71
- PNID1307113-RBrb 13 16 5 13 71
- PNID1307116-RBrb 13 16 5 16 71
- PNID1307120-RBrb 13 16 5 20 71
- PNID1307125-RBrb 13 16 5 25 71
- PNID1308010-RBrb 13 16 5 10 80
- PNID1308013-RBrb 13 16 5 13 80
- PNID1308013-RBrb 13 16 5 13 80
- PNID1308016-RBrb 13 16 5 16 80
- PNID1308020-RBrb 13 16 5 20 80
- PNID1308025-RBrb 13 16 5 25 80
- PNID1310010-RBrb 13 16 5 10 100
- PNID1310013-RBrb 13 16 5 13 100
- PNID1310013-RBrb 13 16 5 13 100
- PNID1310016-RBrb 13 16 5 16 100
- PNID1310020-RBrb 13 16 5 20 100
- PNID1310025-RBrb 13 16 5 25 100
- PNID1312010-RBrb 13 16 5 10 120
- PNID1312013-RBrb 13 16 5 13 120
- PNID1312013-RBrb 13 16 5 13 120
- PNID1312016-RBrb 13 16 5 16 120
- PNID1312020-RBrb 13 16 5 20 120
- PNID1312025-RBrb 13 16 5 25 120
- PNID1407110-RBrb 14 17 5 10 71
- PNID1407113-RBrb 14 17 5 13 71
- PNID1407116-RBrb 14 17 5 16 71
- PNID1407120-RBrb 14 17 5 20 71
- PNID1407125-RBrb 14 17 5 25 71
- PNID1408010-RBrb 14 17 5 10 80
- PNID1408013-RBrb 14 17 5 13 80
- PNID1408016-RBrb 14 17 5 16 80
- PNID1408020-RBrb 14 17 5 20 80
- PNID1408025-RBrb 14 17 5 25 80
- PNID1410010-RBrb 14 17 5 10 100
- PNID1410013-RBrb 14 17 5 13 100
- PNID1410016-RBrb 14 17 5 16 100
- PNID1410020-RBrb 14 17 5 20 100
- PNID1410025-RBrb 14 17 5 25 100
- PNID1412010-RBrb 14 17 5 10 120
- PNID1412013-RBrb 14 17 5 13 120
- PNID1412016-RBrb 14 17 5 16 120
- PNID1412020-RBrb 14 17 5 20 120
- PNID1412025-RBrb 14 17 5 25 120
- PNID1507110-RBrb 15 18 5 10 71
- PNID1507113-RBrb 15 18 5 13 71
- PNID1507120-RBrb 15 18 5 20 71
- PNID1507125-RBrb 15 18 5 25 71
- PNID1508010-RBrb 15 18 5 10 80
- PNID1508013-RBrb 15 18 5 13 80
- PNID1508020-RBrb 15 18 5 20 80
- PNID1508025-RBrb 15 18 5 25 80
- PNID1510010-RBrb 15 18 5 10 100
- PNID1510013-RBrb 15 18 5 13 100
- PNID1510020-RBrb 15 18 5 20 100
- PNID1510025-RBrb 15 18 5 25 100
- PNID1512010-RBrb 15 18 5 10 120
- PNID1512013-RBrb 15 18 5 13 120
- PNID1512020-RBrb 15 18 5 20 120
- PNID1512025-RBrb 15 18 5 25 120
- PNID1607110-RBrb 16 19 5 10 71
- PNID1607113-RBrb 16 19 5 13 71
- PNID1607116-RBrb 16 19 5 16 71
- PNID1607116-RBrb 16 19 5 16 71
- PNID1607120-RBrb 16 19 5 20 71
- PNID1607125-RBrb 16 19 5 25 71
- PNID1608010-RBrb 16 19 5 10 80
- PNID1608013-RBrb 16 19 5 13 80
- PNID1608016-RBrb 16 19 5 16 80
- PNID1608016-RBrb 16 19 5 16 80
- PNID1608020-RBrb 16 19 5 20 80
- PNID1608025-RBrb 16 19 5 25 80
- PNID1610010-RBrb 16 19 5 10 100
- PNID1610013-RBrb 16 19 5 13 100
- PNID1610016-RBrb 16 19 5 16 100
- PNID1610016-RBrb 16 19 5 16 100
- PNID1610020-RBrb 16 19 5 20 100
- PNID1610025-RBrb 16 19 5 25 100
- PNID1612010-RBrb 16 19 5 10 120
- PNID1612013-RBrb 16 19 5 13 120
- PNID1612016-RBrb 16 19 5 16 120
- PNID1612016-RBrb 16 19 5 16 120
- PNID1612020-RBrb 16 19 5 20 120
- PNID1612025-RBrb 16 19 5 25 120
- PNID2007110-RBrb 20 23 5 10 71
- PNID2007113-RBrb 20 23 5 13 71
- PNID2007116-RBrb 20 23 5 16 71
- PNID2007120-RBrb 20 23 5 20 71
- PNID2007125-RBrb 20 23 5 25 71
- PNID2008010-RBrb 20 23 5 10 80
- PNID2008013-RBrb 20 23 5 13 80
- PNID2008016-RBrb 20 23 5 16 80
- PNID2008020-RBrb 20 23 5 20 80
- PNID2008025-RBrb 20 23 5 25 80
- PNID2010010-RBrb 20 23 5 10 100
- PNID2010013-RBrb 20 23 5 13 100
- PNID2010016-RBrb 20 23 5 16 100
- PNID2010020-RBrb 20 23 5 20 100
- PNID2010025-RBrb 20 23 5 25 100
- PNID2012010-RBrb 20 23 5 10 120
- PNID2012013-RBrb 20 23 5 13 120
- PNID2012016-RBrb 20 23 5 16 120
- PNID2012020-RBrb 20 23 5 20 120
- PNID2012025-RBrb 20 23 5 25 120
- PNID2507110-RBrb 25 28 5 10 71
- PNID2507113-RBrb 25 28 5 13 71
- PNID2507116-RBrb 25 28 5 16 71
- PNID2507120-RBrb 25 28 5 20 71
- PNID2507125-RBrb 25 28 5 25 71
- PNID2508010-RBrb 25 28 5 10 80
- PNID2508013-RBrb 25 28 5 13 80
- PNID2508016-RBrb 25 28 5 16 80
- PNID2508020-RBrb 25 28 5 20 80
- PNID2508025-RBrb 25 28 5 25 80
- PNID2510010-RBrb 25 28 5 10 100
- PNID2510013-RBrb 25 28 5 13 100
- PNID2510016-RBrb 25 28 5 16 100
- PNID2510020-RBrb 25 28 5 20 100
- PNID2510025-RBrb 25 28 5 25 100
- PNID2512010-RBrb 25 28 5 10 120
- PNID2512013-RBrb 25 28 5 13 120
- PNID2512016-RBrb 25 28 5 16 120
- PNID2512020-RBrb 25 28 5 20 120
- PNID2512025-RBrb 25 28 5 25 120
- PNID3207110-RBrb 32 35 5 10 71
- PNID3207113-RBrb 32 35 5 13 71
- PNID3207116-RBrb 32 35 5 16 71
- PNID3207120-RBrb 32 35 5 20 71
- PNID3207125-RBrb 32 35 5 25 71
- PNID3208010-RBrb 32 35 5 10 80
- PNID3208013-RBrb 32 35 5 13 80
- PNID3208016-RBrb 32 35 5 16 80
- PNID3208020-RBrb 32 35 5 20 80
- PNID3208025-RBrb 32 35 5 25 80
- PNID3210010-RBrb 32 35 5 10 100
- PNID3210013-RBrb 32 35 5 13 100
- PNID3210016-RBrb 32 35 5 16 100
- PNID3210020-RBrb 32 35 5 20 100
- PNID3210025-RBrb 32 35 5 25 100
- PNID3212010-RBrb 32 35 5 10 120
- PNID3212013-RBrb 32 35 5 13 120
- PNID3212016-RBrb 32 35 5 16 120
- PNID3212020-RBrb 32 35 5 20 120
- PNID3212025-RBrb 32 35 5 25 120

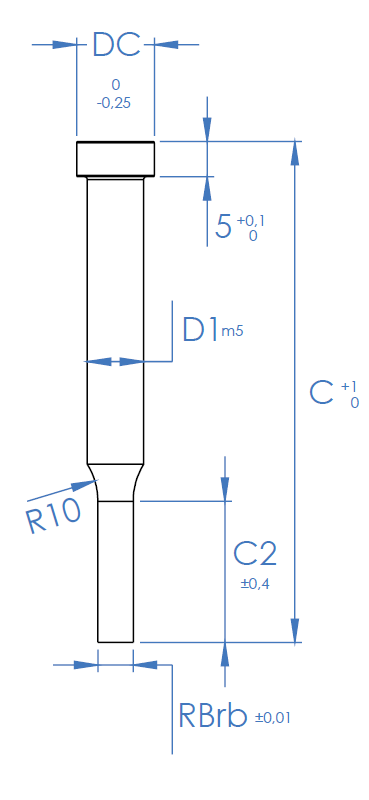

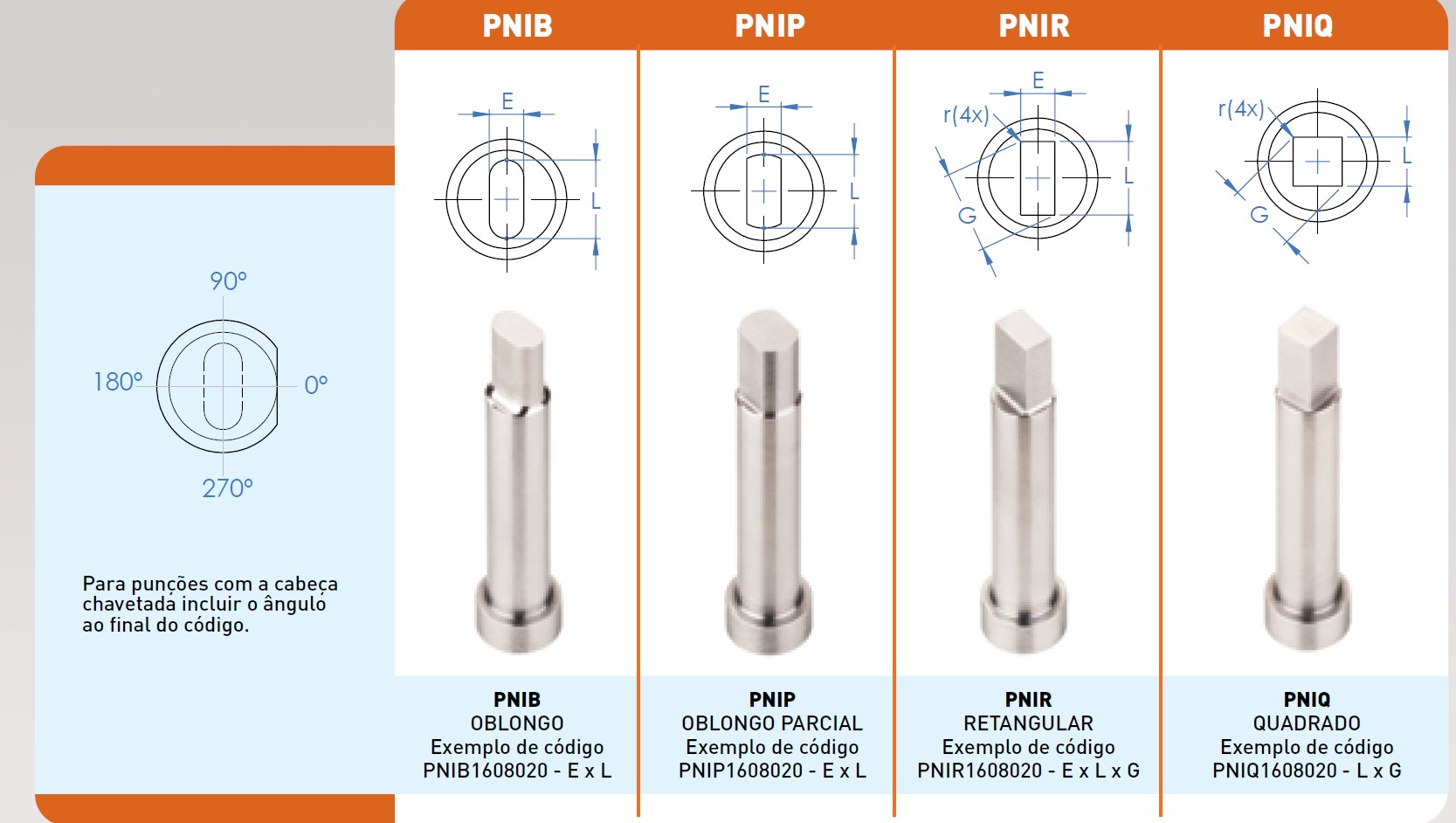

Características
TÉCNICAS

RBrb = Diâmetro do rebaixo
Exemplo: PNID1608020-RBrb com rebaixo Ø 15,04 → PNID1608020-1504
