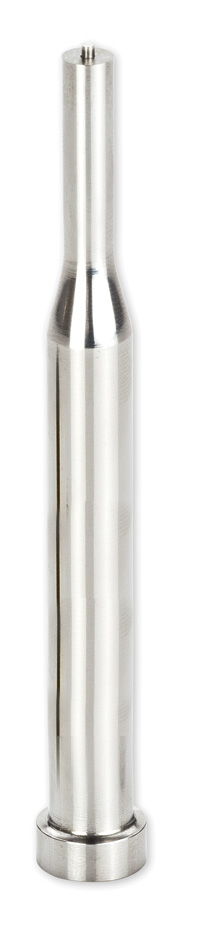

PUNÇÃO DE CABEÇA CILÍNDRICA EM DIÂMETROCOM REBAIXO E EJETOR - ISO 8020 (PARCIAL)

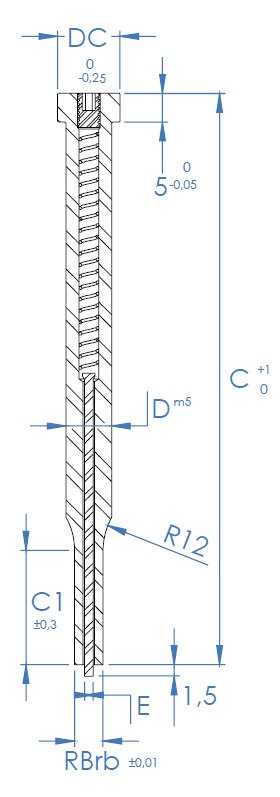

Desenho 3D CÓDIGO D DC K E C1 C
- PEED0507110-RBrb 5 8 5 1.1 10 71
- PEED0507113-RBrb 5 8 5 1.1 13 71
- PEED0507116-RBrb 5 8 5 1.1 16 71
- PEED0507120-RBrb 5 8 5 1.1 20 71
- PEED0507125-RBrb 5 8 5 1.1 25 71
- PEED0607110-RBrb 6 9 5 1.1 10 71
- PEED0607113-RBrb 6 9 5 1.1 13 71
- PEED0607116-RBrb 6 9 5 1.1 16 71
- PEED0607120-RBrb 6 9 5 1.1 20 71
- PEED0607125-RBrb 6 9 5 1.1 25 71
- PEED0707110-RBrb 7 10 5 1.1 10 71
- PEED0707113-RBrb 7 10 5 1.1 13 71
- PEED0707116-RBrb 7 10 5 1.1 16 71
- PEED0707120-RBrb 7 10 5 1.1 20 71
- PEED0707125-RBrb 7 10 5 1.1 25 71
- PEED0807110-RBrb 8 11 5 1.1 10 71
- PEED0807113-RBrb 8 11 5 1.1 13 71
- PEED0807116-RBrb 8 11 5 1.1 16 71
- PEED0807120-RBrb 8 11 5 1.1 20 71
- PEED0807125-RBrb 8 11 5 1.1 25 71
- PEED0907110-RBrb 9 12 5 1.1 10 71
- PEED0907113-RBrb 9 12 5 1.1 13 71
- PEED0907116-RBrb 9 12 5 1.1 16 71
- PEED0907120-RBrb 9 12 5 1.1 20 71
- PEED0907125-RBrb 9 12 5 1.1 25 71
- PEED1007110-RBrb 10 13 5 1.6 10 71
- PEED1007113-RBrb 10 13 5 1.6 13 71
- PEED1007116-RBrb 10 13 5 1.6 16 71
- PEED1007120-RBrb 10 13 5 1.6 20 71
- PEED1007125-RBrb 10 13 5 1.6 25 71
- PEED1107110-RBrb 11 14 5 1.6 10 71
- PEED1107113-RBrb 11 14 5 1.6 13 71
- PEED1107116-RBrb 11 14 5 1.6 16 71
- PEED1107120-RBrb 11 14 5 1.6 20 71
- PEED1107125-RBrb 11 14 5 1.6 25 71
- PEED1207110-RBrb 12 15 5 1.6 10 71
- PEED1207113-RBrb 12 15 5 1.6 13 71
- PEED1207116-RBrb 12 15 5 1.6 16 71
- PEED1207120-RBrb 12 15 5 1.6 20 71
- PEED1207125-RBrb 12 15 5 1.6 25 71
- PEED1307110-RBrb 13 16 5 1.6 10 71
- PEED1307113-RBrb 13 16 5 1.6 13 71
- PEED1307116-RBrb 13 16 5 1.6 16 71
- PEED1307120-RBrb 13 16 5 1.6 20 71
- PEED1307125-RBrb 13 16 5 1.6 25 71
- PEED1407110-RBrb 14 17 5 1.6 10 71
- PEED1407113-RBrb 14 17 5 1.6 13 71
- PEED1407116-RBrb 14 17 5 1.6 16 71
- PEED1407120-RBrb 14 17 5 1.6 20 71
- PEED1407125-RBrb 14 17 5 1.6 25 71
- PEED1507110-RBrb 15 18 5 2.2 10 71
- PEED1507113-RBrb 15 18 5 2.2 13 71
- PEED1507116-RBrb 15 18 5 2.2 16 71
- PEED1507120-RBrb 15 18 5 2.2 20 71
- PEED1507125-RBrb 15 18 5 2.2 25 71
- PEED1607110-RBrb 16 19 5 2.2 10 71
- PEED1607113-RBrb 16 19 5 2.2 13 71
- PEED1607116-RBrb 16 19 5 2.2 16 71
- PEED1607120-RBrb 16 19 5 2.2 20 71
- PEED1607125-RBrb 16 19 5 2.2 25 71
- PEED2007110-RBrb 20 23 5 2.2 10 71
- PEED2007113-RBrb 20 23 5 2.2 13 71
- PEED2007116-RBrb 20 23 5 2.2 16 71
- PEED2007120-RBrb 20 23 5 2.2 20 71
- PEED2007125-RBrb 20 23 5 2.2 25 71
- PEED2507110-RBrb 25 28 5 2.2 10 71
- PEED2507113-RBrb 25 28 5 2.2 13 71
- PEED2507116-RBrb 25 28 5 2.2 16 71
- PEED2507120-RBrb 25 28 5 2.2 20 71
- PEED2507125-RBrb 25 28 5 2.2 25 71
- PEED3207110-RBrb 32 35 5 2.2 10 71
- PEED3207113-RBrb 32 35 5 2.2 13 71
- PEED3207116-RBrb 32 35 5 2.2 16 71
- PEED3207120-RBrb 32 35 5 2.2 20 71
- PEED3207125-RBrb 32 35 5 2.2 25 71
- PEED0508010-RBrb 5 8 5 1.1 10 80
- PEED0508013-RBrb 5 8 5 1.1 13 80
- PEED0508016-RBrb 5 8 5 1.1 16 80
- PEED0508020-RBrb 5 8 5 1.1 20 80
- PEED0508025-RBrb 5 8 5 1.1 25 80
- PEED0608010-RBrb 6 9 5 1.1 10 80
- PEED0608013-RBrb 6 9 5 1.1 13 80
- PEED0608016-RBrb 6 9 5 1.1 16 80
- PEED0608020-RBrb 6 9 5 1.1 20 80
- PEED0608025-RBrb 6 9 5 1.1 25 80
- PEED0708010-RBrb 7 10 5 1.1 10 80
- PEED0708013-RBrb 7 10 5 1.1 13 80
- PEED0708016-RBrb 7 10 5 1.1 16 80
- PEED0708020-RBrb 7 10 5 1.1 20 80
- PEED0708025-RBrb 7 10 5 1.1 25 80
- PEED0808010-RBrb 8 11 5 1.1 10 80
- PEED0808013-RBrb 8 11 5 1.1 13 80
- PEED0808016-RBrb 8 11 5 1.1 16 80
- PEED0808020-RBrb 8 11 5 1.1 20 80
- PEED0808025-RBrb 8 11 5 1.1 25 80
- PEED0908010-RBrb 9 12 5 1.1 10 80
- PEED0908013-RBrb 9 12 5 1.1 13 80
- PEED0908016-RBrb 9 12 5 1.1 16 80
- PEED0908020-RBrb 9 12 5 1.1 20 80
- PEED0908025-RBrb 9 12 5 1.1 25 80
- PEED1008010-RBrb 10 13 5 1.6 10 80
- PEED1008013-RBrb 10 13 5 1.6 13 80
- PEED1008016-RBrb 10 13 5 1.6 16 80
- PEED1008020-RBrb 10 13 5 1.6 20 80
- PEED1008025-RBrb 10 13 5 1.6 25 80
- PEED1108010-RBrb 11 14 5 1.6 10 80
- PEED1108013-RBrb 11 14 5 1.6 13 80
- PEED1108016-RBrb 11 14 5 1.6 16 80
- PEED1108020-RBrb 11 14 5 1.6 20 80
- PEED1108025-RBrb 11 14 5 1.6 25 80
- PEED1208010-RBrb 12 15 5 1.6 10 80
- PEED1208013-RBrb 12 15 5 1.6 13 80
- PEED1208016-RBrb 12 15 5 1.6 16 80
- PEED1208020-RBrb 12 15 5 1.6 20 80
- PEED1208025-RBrb 12 15 5 1.6 25 80
- PEED1308010-RBrb 13 16 5 1.6 10 80
- PEED1308013-RBrb 13 16 5 1.6 13 80
- PEED1308016-RBrb 13 16 5 1.6 16 80
- PEED1308020-RBrb 13 16 5 1.6 20 80
- PEED1308025-RBrb 13 16 5 1.6 25 80
- PEED1408010-RBrb 14 17 5 1.6 10 80
- PEED1408013-RBrb 14 17 5 1.6 13 80
- PEED1408016-RBrb 14 17 5 1.6 16 80
- PEED1408020-RBrb 14 17 5 1.6 20 80
- PEED1408025-RBrb 14 17 5 1.6 25 80
- PEED1508010-RBrb 15 18 5 2.2 10 80
- PEED1508013-RBrb 15 18 5 2.2 13 80
- PEED1508016-RBrb 15 18 5 2.2 16 80
- PEED1508020-RBrb 15 18 5 2.2 20 80
- PEED1508025-RBrb 15 18 5 2.2 25 80
- PEED1608010-RBrb 16 19 5 2.2 10 80
- PEED1608013-RBrb 16 19 5 2.2 13 80
- PEED1608016-RBrb 16 19 5 2.2 16 80
- PEED1608020-RBrb 16 19 5 2.2 20 80
- PEED1608025-RBrb 16 19 5 2.2 25 80
- PEED2008010-RBrb 20 23 5 2.2 10 80
- PEED2008013-RBrb 20 23 5 2.2 13 80
- PEED2008016-RBrb 20 23 5 2.2 16 80
- PEED2008020-RBrb 20 23 5 2.2 20 80
- PEED2008025-RBrb 20 23 5 2.2 25 80
- PEED2508010-RBrb 25 28 5 2.2 10 80
- PEED2508013-RBrb 25 28 5 2.2 13 80
- PEED2508016-RBrb 25 28 5 2.2 16 80
- PEED2508020-RBrb 25 28 5 2.2 20 80
- PEED2508025-RBrb 25 28 5 2.2 25 80
- PEED3208010-RBrb 32 35 5 2.2 10 80
- PEED3208013-RBrb 32 35 5 2.2 13 80
- PEED3208016-RBrb 32 35 5 2.2 16 80
- PEED3208020-RBrb 32 35 5 2.2 20 80
- PEED3208025-RBrb 32 35 5 2.2 25 80
- PEED0510010-RBrb 5 8 5 1.1 10 100
- PEED0510013-RBrb 5 8 5 1.1 13 100
- PEED0510016-RBrb 5 8 5 1.1 16 100
- PEED0510020-RBrb 5 8 5 1.1 20 100
- PEED0510025-RBrb 5 8 5 1.1 25 100
- PEED0610010-RBrb 6 9 5 1.1 10 100
- PEED0610013-RBrb 6 9 5 1.1 13 100
- PEED0610016-RBrb 6 9 5 1.1 16 100
- PEED0610020-RBrb 6 9 5 1.1 20 100
- PEED0610025-RBrb 6 9 5 1.1 25 100
- PEED0710010-RBrb 7 10 5 1.1 10 100
- PEED0710013-RBrb 7 10 5 1.1 13 100
- PEED0710016-RBrb 7 10 5 1.1 16 100
- PEED0710020-RBrb 7 10 5 1.1 20 100
- PEED0710025-RBrb 7 10 5 1.1 25 100
- PEED0810010-RBrb 8 11 5 1.1 10 100
- PEED0810013-RBrb 8 11 5 1.1 13 100
- PEED0810016-RBrb 8 11 5 1.1 16 100
- PEED0810020-RBrb 8 11 5 1.1 20 100
- PEED0810025-RBrb 8 11 5 1.1 25 100
- PEED0910010-RBrb 9 12 5 1.1 10 100
- PEED0910013-RBrb 9 12 5 1.1 13 100
- PEED0910016-RBrb 9 12 5 1.1 16 100
- PEED0910020-RBrb 9 12 5 1.1 20 100
- PEED0910025-RBrb 9 12 5 1.1 25 100
- PEED1010010-RBrb 10 13 5 1.6 10 100
- PEED1010013-RBrb 10 13 5 1.6 13 100
- PEED1010016-RBrb 10 13 5 1.6 16 100
- PEED1010020-RBrb 10 13 5 1.6 20 100
- PEED1010025-RBrb 10 13 5 1.6 25 100
- PEED1110010-RBrb 11 14 5 1.6 10 100
- PEED1110013-RBrb 11 14 5 1.6 13 100
- PEED1110016-RBrb 11 14 5 1.6 16 100
- PEED1110020-RBrb 11 14 5 1.6 20 100
- PEED1110025-RBrb 11 14 5 1.6 25 100
- PEED1210010-RBrb 12 15 5 1.6 10 100
- PEED1210013-RBrb 12 15 5 1.6 13 100
- PEED1210016-RBrb 12 15 5 1.6 16 100
- PEED1210020-RBrb 12 15 5 1.6 20 100
- PEED1210025-RBrb 12 15 5 1.6 25 100
- PEED1310010-RBrb 13 16 5 1.6 10 100
- PEED1310013-RBrb 13 16 5 1.6 13 100
- PEED1310016-RBrb 13 16 5 1.6 16 100
- PEED1310020-RBrb 13 16 5 1.6 20 100
- PEED1310025-RBrb 13 16 5 1.6 25 100
- PEED1410010-RBrb 14 17 5 1.6 10 100
- PEED1410013-RBrb 14 17 5 1.6 13 100
- PEED1410016-RBrb 14 17 5 1.6 16 100
- PEED1410020-RBrb 14 17 5 1.6 20 100
- PEED1410025-RBrb 14 17 5 1.6 25 100
- PEED1510010-RBrb 15 18 5 2.2 10 100
- PEED1510013-RBrb 15 18 5 2.2 13 100
- PEED1510016-RBrb 15 18 5 2.2 16 100
- PEED1510020-RBrb 15 18 5 2.2 20 100
- PEED1510025-RBrb 15 18 5 2.2 25 100
- PEED1610010-RBrb 16 19 5 2.2 10 100
- PEED1610013-RBrb 16 19 5 2.2 13 100
- PEED1610016-RBrb 16 19 5 2.2 16 100
- PEED1610020-RBrb 16 19 5 2.2 20 100
- PEED1610025-RBrb 16 19 5 2.2 25 100
- PEED2010010-RBrb 20 23 5 2.2 10 100
- PEED2010013-RBrb 20 23 5 2.2 13 100
- PEED2010016-RBrb 20 23 5 2.2 16 100
- PEED2010020-RBrb 20 23 5 2.2 20 100
- PEED2010025-RBrb 20 23 5 2.2 25 100
- PEED2510010-RBrb 25 28 5 2.2 10 100
- PEED2510013-RBrb 25 28 5 2.2 13 100
- PEED2510016-RBrb 25 28 5 2.2 16 100
- PEED2510020-RBrb 25 28 5 2.2 20 100
- PEED2510025-RBrb 25 28 5 2.2 25 100
- PEED3210010-RBrb 32 35 5 2.2 10 100
- PEED3210013-RBrb 32 35 5 2.2 13 100
- PEED3210016-RBrb 32 35 5 2.2 16 100
- PEED3210020-RBrb 32 35 5 2.2 20 100
- PEED3210025-RBrb 32 35 5 2.2 25 100
Características
TÉCNICAS

RBrb = Diâmetro do rebaixo
Exemplo: PEED1608020-RBrb com rebaixo Ø 15,04 → PEED1608020-1504
