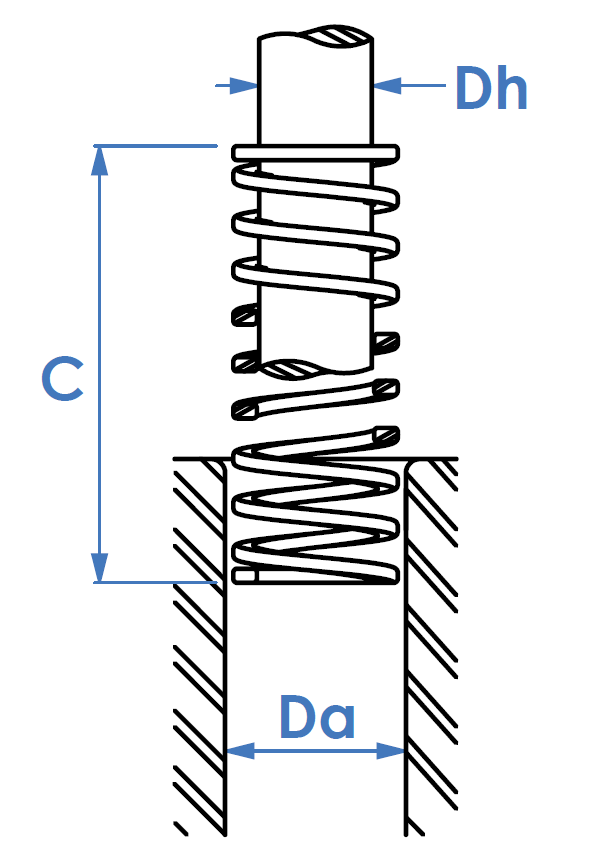

Da - Diâmetro do alojamento onde a mola será utilizada.
Dh - Diâmetro máximo da haste utilizada para guiar a mola.
N/mm - Carga em Nf por mm comprimido.
CM - Curso máximo para funcionamento.
C - Comprimento total.
CS - Curso sugerido para longa duração.
Nota: 1 N = 0,102 kgf, simplificando tirar 1 casa decimal para transformar em Kgf ou dividir por 10.
Filtrar por:

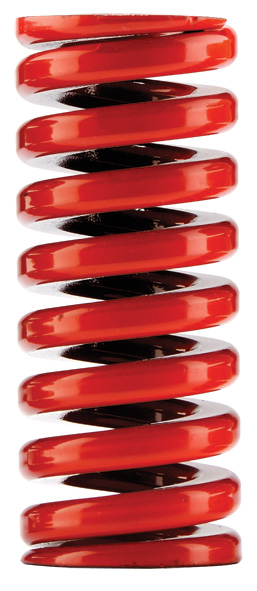

MOLA TIPO ISO 10243 - COR VERMELHA - CARGA PESADA
| Desenho 3D | CÓDIGO | Da | Dh | C | N/ mm |
CS=20% CURSO SUGERIDO Curso mm |
CS=20% CURSO SUGERIDO Carga N |
CM = 30% CURSO MÁXIMO Curso mm |
CM = 30% CURSO MÁXIMO Carga N |
|---|---|---|---|---|---|---|---|---|---|
| - | VM10025IM | 10 | 5 | 25 | 22.1 | 5 | 111 | 7.5 | 166 |
| - | VM10032IM | 10 | 5 | 32 | 17.5 | 6.4 | 112 | 9.6 | 168 |
| - | VM10038IM | 10 | 5 | 38 | 17.1 | 7.6 | 130 | 11.4 | 195 |
| - | VM10044IM | 10 | 5 | 44 | 15 | 8.8 | 132 | 13.2 | 198 |
| - | VM10051IM | 10 | 5 | 51 | 12.8 | 10.2 | 131 | 15.3 | 196 |
| - | VM10064IM | 10 | 5 | 64 | 10.7 | 12.8 | 137 | 19.2 | 205 |
| - | VM10076IM | 10 | 5 | 76 | 7.5 | 15.2 | 114 | 22.8 | 171 |
| - | VM10305IM | 10 | 5 | 305 | 2.1 | 61 | 128 | 91.5 | 192 |
| - | VM13025IM | 12.5 | 6.3 | 25 | 42.1 | 5 | 211 | 7.5 | 316 |
| - | VM13032IM | 12.5 | 6.3 | 32 | 33.2 | 6.4 | 212 | 9.6 | 319 |
| - | VM13038IM | 12.5 | 6.3 | 38 | 29.3 | 7.6 | 223 | 11.4 | 334 |
| - | VM13044IM | 12.5 | 6.3 | 44 | 24.6 | 8.8 | 216 | 13.2 | 325 |
| - | VM13051IM | 12.5 | 6.3 | 51 | 19.6 | 10.2 | 200 | 15.3 | 300 |
| - | VM13064IM | 12.5 | 6.3 | 64 | 15 | 12.8 | 192 | 19.2 | 288 |
| - | VM13076IM | 12.5 | 6.3 | 76 | 13.2 | 15.2 | 201 | 22.8 | 301 |
| - | VM13089IM | 12.5 | 6.3 | 89 | 11.4 | 17.8 | 203 | 26.7 | 304 |
| - | VM13102IM | 12.5 | 6.3 | 102 | 9.4 | 20.4 | 192 | 30.6 | 288 |
| - | VM13305IM | 12.5 | 6.3 | 305 | 2.8 | 61 | 171 | 91.5 | 256 |
| - | VM16025IM | 16 | 8 | 25 | 75.7 | 5 | 379 | 7.5 | 568 |
| - | VM16032IM | 16 | 8 | 32 | 52.8 | 6.4 | 338 | 9.6 | 507 |
| - | VM16038IM | 16 | 8 | 38 | 48.5 | 7.6 | 369 | 11.4 | 553 |
| - | VM16044IM | 16 | 8 | 44 | 42.8 | 8.8 | 377 | 13.2 | 565 |
| - | VM16051IM | 16 | 8 | 51 | 37.1 | 10.2 | 378 | 15.3 | 568 |
| - | VM16064IM | 16 | 8 | 64 | 30.3 | 12.8 | 388 | 19.2 | 582 |
| - | VM16076IM | 16 | 8 | 76 | 25.8 | 15.2 | 392 | 22.8 | 588 |
| - | VM16089IM | 16 | 8 | 89 | 21.7 | 17.8 | 386 | 26.7 | 579 |
| - | VM16102IM | 16 | 8 | 102 | 19.3 | 20.4 | 394 | 30.6 | 591 |
| - | VM16115IM | 16 | 8 | 115 | 17 | 23 | 391 | 34.5 | 587 |
| - | VM16305IM | 16 | 8 | 305 | 7.1 | 61 | 433 | 91.5 | 650 |
| - | VM20025IM | 20 | 10 | 25 | 216 | 5 | 1080 | 7.5 | 1620 |
| - | VM20032IM | 20 | 10 | 32 | 168 | 6.4 | 1075 | 9.6 | 1613 |
| - | VM20038IM | 20 | 10 | 38 | 129 | 7.6 | 980 | 11.4 | 1471 |
| - | VM20044IM | 20 | 10 | 44 | 112 | 8.8 | 986 | 13.2 | 1478 |
| - | VM20051IM | 20 | 10 | 51 | 95 | 10.2 | 959 | 15.3 | 1438 |
| - | VM20064IM | 20 | 10 | 64 | 72.1 | 12.8 | 923 | 19.2 | 1384 |
| - | VM20076IM | 20 | 10 | 76 | 59.7 | 15.2 | 907 | 22.8 | 1361 |
| - | VM20089IM | 20 | 10 | 89 | 50.5 | 17.8 | 899 | 26.7 | 1348 |
| - | VM20102IM | 20 | 10 | 102 | 44.2 | 20.4 | 902 | 30.6 | 1353 |
| - | VM20115IM | 20 | 10 | 115 | 38.4 | 23 | 883 | 34.5 | 1325 |
| - | VM20127IM | 20 | 10 | 127 | 34.1 | 25.4 | 866 | 38.1 | 1299 |
| - | VM20139IM | 20 | 10 | 139 | 31 | 27.8 | 862 | 41.7 | 1293 |
| - | VM20152IM | 20 | 10 | 152 | 28.2 | 30.4 | 857 | 45.6 | 1286 |
| - | VM20305IM | 20 | 10 | 305 | 15 | 61 | 915 | 91.5 | 1373 |
| - | VM25025IM | 25 | 12.5 | 25 | 375 | 5 | 1875 | 7.5 | 2813 |
| - | VM25032IM | 25 | 12.5 | 32 | 297 | 6.4 | 1901 | 9.6 | 2851 |
| - | VM25038IM | 25 | 12.5 | 38 | 219 | 7.6 | 1664 | 11.4 | 2497 |
| - | VM25044IM | 25 | 12.5 | 44 | 187 | 8.8 | 1646 | 13.2 | 2468 |
| - | VM25051IM | 25 | 12.5 | 51 | 156 | 10.2 | 1591 | 15.3 | 2387 |
| - | VM25064IM | 25 | 12.5 | 64 | 123 | 12.8 | 1574 | 19.2 | 2362 |
| - | VM25076IM | 25 | 12.5 | 76 | 99 | 15.2 | 1505 | 22.8 | 2257 |
| - | VM25089IM | 25 | 12.5 | 89 | 84 | 17.8 | 1495 | 26.7 | 2243 |
| - | VM25102IM | 25 | 12.5 | 102 | 73 | 20.4 | 1489 | 30.6 | 2234 |
| - | VM25115IM | 25 | 12.5 | 115 | 65 | 23 | 1495 | 34.5 | 2243 |
| - | VM25127IM | 25 | 12.5 | 127 | 57.7 | 25.4 | 1466 | 38.1 | 2198 |
| - | VM25139IM | 25 | 12.5 | 139 | 52.7 | 27.8 | 1465 | 41.7 | 2198 |
| - | VM25152IM | 25 | 12.5 | 152 | 47.8 | 30.4 | 1453 | 45.6 | 2180 |
| - | VM25178IM | 25 | 12.5 | 178 | 41 | 35.6 | 1460 | 53.4 | 2189 |
| - | VM25203IM | 25 | 12.5 | 203 | 35.8 | 40.6 | 1453 | 60.9 | 2180 |
| - | VM25305IM | 25 | 12.5 | 305 | 22.9 | 61 | 1397 | 91.5 | 2095 |
| - | VM32038IM | 32 | 16 | 38 | 388 | 7.6 | 2949 | 11.4 | 4423 |
| - | VM32044IM | 32 | 16 | 44 | 324 | 8.8 | 2851 | 13.2 | 4277 |
| - | VM32051IM | 32 | 16 | 51 | 272 | 10.2 | 2774 | 15.3 | 4162 |
| - | VM32064IM | 32 | 16 | 64 | 212 | 12.8 | 2714 | 19.2 | 4070 |
| - | VM32076IM | 32 | 16 | 76 | 172 | 15.2 | 2614 | 22.8 | 3922 |
| - | VM32089IM | 32 | 16 | 89 | 141 | 17.8 | 2510 | 26.7 | 3765 |
| - | VM32102IM | 32 | 16 | 102 | 122 | 20.4 | 2489 | 30.6 | 3733 |
| - | VM32115IM | 32 | 16 | 115 | 107 | 23 | 2461 | 34.5 | 3692 |
| - | VM32127IM | 32 | 16 | 127 | 93 | 25.4 | 2362 | 38.1 | 3543 |
| - | VM32139IM | 32 | 16 | 139 | 86 | 27.8 | 2391 | 41.7 | 3586 |
| - | VM32152IM | 32 | 16 | 152 | 78 | 30.4 | 2371 | 45.6 | 3557 |
| - | VM32178IM | 32 | 16 | 178 | 67.2 | 35.6 | 2392 | 53.4 | 3588 |
| - | VM32203IM | 32 | 16 | 203 | 59.1 | 40.6 | 2399 | 60.9 | 3599 |
| - | VM32254IM | 32 | 16 | 254 | 46.4 | 50.8 | 2357 | 76.2 | 3536 |
| - | VM32305IM | 32 | 16 | 305 | 38 | 61 | 2318 | 91.5 | 3477 |
| - | VM40051IM | 40 | 20 | 51 | 350 | 10.2 | 3570 | 15.3 | 5355 |
| - | VM40064IM | 40 | 20 | 64 | 269 | 12.8 | 3443 | 19.2 | 5165 |
| - | VM40076IM | 40 | 20 | 76 | 219 | 15.2 | 3329 | 22.8 | 4993 |
| - | VM40089IM | 40 | 20 | 89 | 190 | 17.8 | 3382 | 26.7 | 5073 |
| - | VM40102IM | 40 | 20 | 102 | 163 | 20.4 | 3325 | 30.6 | 4988 |
| - | VM40115IM | 40 | 20 | 115 | 142 | 23 | 3266 | 34.5 | 4899 |
| - | VM40127IM | 40 | 20 | 127 | 128 | 25.4 | 3251 | 38.1 | 4877 |
| - | VM40139IM | 40 | 20 | 139 | 115 | 27.8 | 3197 | 41.7 | 4796 |
| - | VM40152IM | 40 | 20 | 152 | 105 | 30.4 | 3192 | 45.6 | 4788 |
| - | VM40178IM | 40 | 20 | 178 | 89 | 35.6 | 3168 | 53.4 | 4753 |
| - | VM40203IM | 40 | 20 | 203 | 77 | 40.6 | 3126 | 60.9 | 4689 |
| - | VM40254IM | 40 | 20 | 254 | 61 | 50.8 | 3099 | 76.2 | 4648 |
| - | VM40305IM | 40 | 20 | 305 | 51 | 61 | 3111 | 91.5 | 4667 |
| - | VM50064IM | 50 | 25 | 64 | 413 | 12.8 | 5286 | 19.2 | 7930 |
| - | VM50076IM | 50 | 25 | 76 | 339 | 15.2 | 5153 | 22.8 | 7729 |
| - | VM50089IM | 50 | 25 | 89 | 288 | 17.8 | 5126 | 26.7 | 7690 |
| - | VM50102IM | 50 | 25 | 102 | 245 | 20.4 | 4998 | 30.6 | 7497 |
| - | VM50115IM | 50 | 25 | 115 | 215 | 23 | 4945 | 34.5 | 7418 |
| - | VM50127IM | 50 | 25 | 127 | 192 | 25.4 | 4877 | 38.1 | 7315 |
| - | VM50139IM | 50 | 25 | 139 | 168 | 27.8 | 4670 | 41.7 | 7006 |
| - | VM50152IM | 50 | 25 | 152 | 154 | 30.4 | 4682 | 45.6 | 7022 |
| - | VM50178IM | 50 | 25 | 178 | 134 | 35.6 | 4770 | 53.4 | 7156 |
| - | VM50203IM | 50 | 25 | 203 | 117 | 40.6 | 4750 | 60.9 | 7125 |
| - | VM50254IM | 50 | 25 | 254 | 89 | 50.8 | 4521 | 76.2 | 6782 |
| - | VM50305IM | 50 | 25 | 305 | 73 | 61 | 4453 | 91.5 | 6680 |
| - | VM63076IM | 63 | 38 | 76 | 630 | 15.2 | 9576 | 22.8 | 14364 |
| - | VM63089IM | 63 | 38 | 89 | 485 | 17.8 | 8633 | 26.7 | 12950 |
| - | VM63102IM | 63 | 38 | 102 | 434 | 20.4 | 8854 | 30.6 | 13280 |
| - | VM63115IM | 63 | 38 | 115 | 384 | 23 | 8832 | 34.5 | 13248 |
| - | VM63127IM | 63 | 38 | 127 | 349 | 25.4 | 8865 | 38.1 | 13297 |
| - | VM63152IM | 63 | 38 | 152 | 276 | 30.4 | 8390 | 45.6 | 12589 |
| - | VM63178IM | 63 | 38 | 178 | 237 | 35.6 | 8437 | 53.4 | 12656 |
| - | VM63203IM | 63 | 38 | 203 | 210 | 40.6 | 8526 | 60.9 | 12789 |
| - | VM63254IM | 63 | 38 | 254 | 165 | 50.8 | 8382 | 76.2 | 12573 |
| - | VM63305IM | 63 | 38 | 305 | 134 | 61 | 8174 | 91.5 | 12261 |
