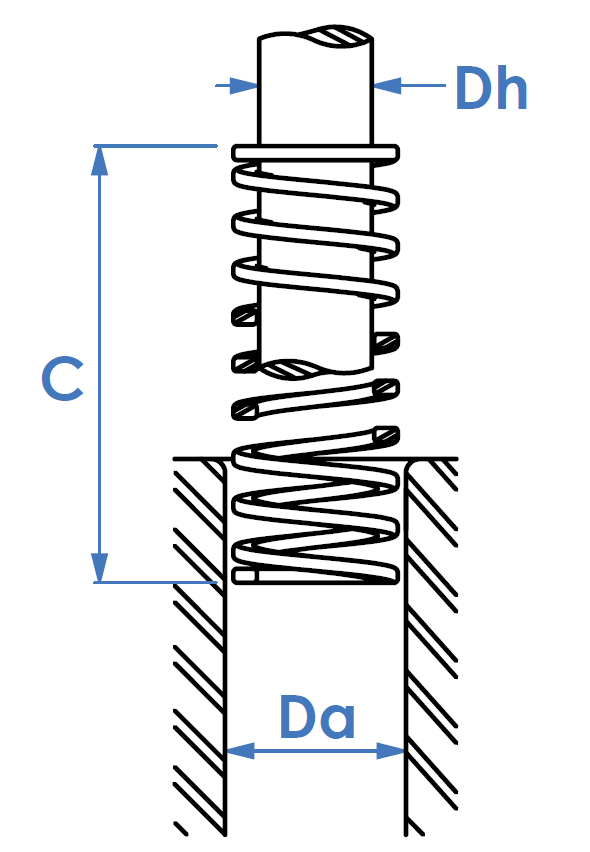

Da - Diâmetro do alojamento onde a mola será utilizada.
Dh - Diâmetro máximo da haste utilizada para guiar a mola.
N/mm - Carga em Nf por mm comprimido.
CM - Curso máximo para funcionamento.
C - Comprimento total.
CS - Curso sugerido para longa duração.
Nota: 1 N = 0,102 kgf, simplificando tirar 1 casa decimal para transformar em Kgf ou dividir por 10.
Filtrar por:

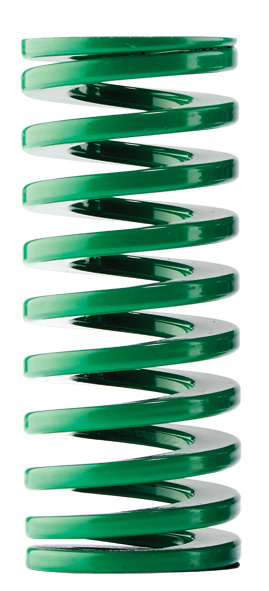

MOLA TIPO ISO 10243 - COR VERDE - CARGA LEVE
| Desenho 3D | Código | Da | Dh | C | N/ mm |
CS=30% CURSO SUGERIDO Curso mm |
CS=30% CURSO SUGERIDO Carga N |
CM = 40% CURSO MÁXIMO Curso mm |
CM = 40% CURSO MÁXIMO Carga N |
|---|---|---|---|---|---|---|---|---|---|
| - | VD10025IM | 10 | 5 | 25 | 10 | 7.5 | 75 | 10 | 100 |
| - | VD10032IM | 10 | 5 | 32 | 8.5 | 9.6 | 82 | 12.8 | 109 |
| - | VD10038IM | 10 | 5 | 38 | 6.8 | 11.4 | 78 | 15.2 | 103 |
| - | VD10044IM | 10 | 5 | 44 | 6 | 13.2 | 79 | 17.6 | 106 |
| - | VD10051IM | 10 | 5 | 51 | 5 | 15.3 | 77 | 20.4 | 102 |
| - | VD10064IM | 10 | 5 | 64 | 4.3 | 19.2 | 83 | 25.6 | 110 |
| - | VD10076IM | 10 | 5 | 76 | 3.2 | 22.8 | 73 | 30.4 | 97 |
| - | VD10305IM | 10 | 5 | 305 | 1.1 | 91.5 | 101 | 122 | 134 |
| - | VD13025IM | 12.5 | 6.3 | 25 | 17.9 | 7.5 | 134 | 10 | 179 |
| - | VD13032IM | 12.5 | 6.3 | 32 | 16.4 | 9.6 | 157 | 12.8 | 210 |
| - | VD13038IM | 12.5 | 6.3 | 38 | 13.6 | 11.4 | 155 | 15.2 | 207 |
| - | VD13044IM | 12.5 | 6.3 | 44 | 12.1 | 13.2 | 160 | 17.6 | 213 |
| - | VD13051IM | 12.5 | 6.3 | 51 | 11.4 | 15.3 | 174 | 20.4 | 233 |
| - | VD13064IM | 12.5 | 6.3 | 64 | 9.3 | 19.2 | 179 | 25.6 | 238 |
| - | VD13076IM | 12.5 | 6.3 | 76 | 7.1 | 22.8 | 162 | 30.4 | 216 |
| - | VD13089IM | 12.5 | 6.3 | 89 | 5.4 | 26.7 | 144 | 35.6 | 192 |
| - | VD13102IM | 12.5 | 6.3 | 102 | 4.6 | 30.6 | 141 | 40.8 | 188 |
| - | VD13305IM | 12.5 | 6.3 | 305 | 1.4 | 91.5 | 128 | 122 | 171 |
| - | VD16025IM | 16 | 8 | 25 | 23.4 | 7.5 | 176 | 10 | 234 |
| - | VD16032IM | 16 | 8 | 32 | 22.9 | 9.6 | 220 | 12.8 | 293 |
| - | VD16038IM | 16 | 8 | 38 | 19.3 | 11.4 | 220 | 15.2 | 293 |
| - | VD16044IM | 16 | 8 | 44 | 17.1 | 13.2 | 226 | 17.6 | 301 |
| - | VD16051IM | 16 | 8 | 51 | 15.7 | 15.3 | 240 | 20.4 | 320 |
| - | VD16064IM | 16 | 8 | 64 | 10.7 | 19.2 | 205 | 25.6 | 274 |
| - | VD16076IM | 16 | 8 | 76 | 10 | 22.8 | 228 | 30.4 | 304 |
| - | VD16089IM | 16 | 8 | 89 | 8.6 | 26.7 | 230 | 35.6 | 306 |
| - | VD16102IM | 16 | 8 | 102 | 7.8 | 30.6 | 239 | 40.8 | 318 |
| - | VD16115IM | 16 | 8 | 115 | 7 | 34.5 | 242 | 46 | 322 |
| - | VD16305IM | 16 | 8 | 305 | 2.5 | 91.5 | 229 | 122 | 305 |
| - | VD20025IM | 20 | 10 | 25 | 55.8 | 7.5 | 419 | 10 | 558 |
| - | VD20032IM | 20 | 10 | 32 | 45 | 9.6 | 432 | 12.8 | 576 |
| - | VD20038IM | 20 | 10 | 38 | 33.3 | 11.4 | 380 | 15.2 | 506 |
| - | VD20044IM | 20 | 10 | 44 | 30 | 13.2 | 396 | 17.6 | 528 |
| - | VD20051IM | 20 | 10 | 51 | 24.5 | 15.3 | 375 | 20.4 | 500 |
| - | VD20064IM | 20 | 10 | 64 | 20 | 19.2 | 384 | 25.6 | 512 |
| - | VD20076IM | 20 | 10 | 76 | 16 | 22.8 | 365 | 30.4 | 486 |
| - | VD20089IM | 20 | 10 | 89 | 14 | 26.7 | 374 | 35.6 | 498 |
| - | VD20102IM | 20 | 10 | 102 | 12 | 30.6 | 367 | 40.8 | 490 |
| - | VD20115IM | 20 | 10 | 115 | 10.9 | 34.5 | 376 | 46 | 501 |
| - | VD20127IM | 20 | 10 | 127 | 9.5 | 38.1 | 362 | 50.8 | 483 |
| - | VD20139IM | 20 | 10 | 139 | 8.4 | 41.7 | 350 | 55.6 | 467 |
| - | VD20152IM | 20 | 10 | 152 | 7.5 | 45.6 | 342 | 60.8 | 456 |
| - | VD20305IM | 20 | 10 | 305 | 4 | 91.5 | 366 | 122 | 488 |
| - | VD25025IM | 25 | 12.5 | 25 | 100 | 7.5 | 750 | 10 | 1000 |
| - | VD25032IM | 25 | 12.5 | 32 | 80.3 | 9.6 | 771 | 12.8 | 1028 |
| - | VD25038IM | 25 | 12.5 | 38 | 62 | 11.4 | 707 | 15.2 | 942 |
| - | VD25044IM | 25 | 12.5 | 44 | 52.9 | 13.2 | 698 | 17.6 | 931 |
| - | VD25051IM | 25 | 12.5 | 51 | 44 | 15.3 | 673 | 20.4 | 898 |
| - | VD25064IM | 25 | 12.5 | 64 | 35.2 | 19.2 | 676 | 25.6 | 901 |
| - | VD25076IM | 25 | 12.5 | 76 | 28 | 22.8 | 638 | 30.4 | 851 |
| - | VD25089IM | 25 | 12.5 | 89 | 24 | 26.7 | 641 | 35.6 | 854 |
| - | VD25102IM | 25 | 12.5 | 102 | 21.1 | 30.6 | 646 | 40.8 | 861 |
| - | VD25115IM | 25 | 12.5 | 115 | 18.7 | 34.5 | 645 | 46 | 860 |
| - | VD25127IM | 25 | 12.5 | 127 | 16.7 | 38.1 | 636 | 50.8 | 848 |
| - | VD25139IM | 25 | 12.5 | 139 | 15.3 | 41.7 | 638 | 55.6 | 851 |
| - | VD25152IM | 25 | 12.5 | 152 | 14 | 45.6 | 638 | 60.8 | 851 |
| - | VD25178IM | 25 | 12.5 | 178 | 12.5 | 53.4 | 668 | 71.2 | 890 |
| - | VD25203IM | 25 | 12.5 | 203 | 10.4 | 60.9 | 633 | 81.2 | 844 |
| - | VD25305IM | 25 | 12.5 | 305 | 7 | 91.5 | 641 | 122 | 854 |
| - | VD32038IM | 32 | 16 | 38 | 94 | 11.4 | 1072 | 15.2 | 1429 |
| - | VD32044IM | 32 | 16 | 44 | 79.5 | 13.2 | 1049 | 17.6 | 1399 |
| - | VD32051IM | 32 | 16 | 51 | 67 | 15.3 | 1025 | 20.4 | 1367 |
| - | VD32064IM | 32 | 16 | 64 | 53 | 19.2 | 1018 | 25.6 | 1357 |
| - | VD32076IM | 32 | 16 | 76 | 44 | 22.8 | 1003 | 30.4 | 1338 |
| - | VD32089IM | 32 | 16 | 89 | 37.2 | 26.7 | 993 | 35.6 | 1324 |
| - | VD32102IM | 32 | 16 | 102 | 32 | 30.6 | 979 | 40.8 | 1306 |
| - | VD32115IM | 32 | 16 | 115 | 29 | 34.5 | 1001 | 46 | 1334 |
| - | VD32127IM | 32 | 16 | 127 | 25 | 38.1 | 953 | 50.8 | 1270 |
| - | VD32139IM | 32 | 16 | 139 | 23 | 41.7 | 959 | 55.6 | 1279 |
| - | VD32152IM | 32 | 16 | 152 | 21.5 | 45.6 | 980 | 60.8 | 1307 |
| - | VD32178IM | 32 | 16 | 178 | 18.2 | 53.4 | 972 | 71.2 | 1296 |
| - | VD32203IM | 32 | 16 | 203 | 15.8 | 60.9 | 962 | 81.2 | 1283 |
| - | VD32254IM | 32 | 16 | 254 | 12.5 | 76.2 | 953 | 101.6 | 1270 |
| - | VD32305IM | 32 | 16 | 305 | 10.3 | 91.5 | 942 | 122 | 1257 |
| - | VD40051IM | 40 | 20 | 51 | 92 | 15.3 | 1408 | 20.4 | 1877 |
| - | VD40064IM | 40 | 20 | 64 | 73 | 19.2 | 1402 | 25.6 | 1869 |
| - | VD40076IM | 40 | 20 | 76 | 63 | 22.8 | 1436 | 30.4 | 1915 |
| - | VD40089IM | 40 | 20 | 89 | 51 | 26.7 | 1362 | 35.6 | 1816 |
| - | VD40102IM | 40 | 20 | 102 | 43 | 30.6 | 1316 | 40.8 | 1754 |
| - | VD40115IM | 40 | 20 | 115 | 39.6 | 34.5 | 1366 | 46 | 1822 |
| - | VD40127IM | 40 | 20 | 127 | 37 | 38.1 | 1410 | 50.8 | 1880 |
| - | VD40139IM | 40 | 20 | 139 | 32 | 41.7 | 1334 | 55.6 | 1779 |
| - | VD40152IM | 40 | 20 | 152 | 28 | 45.6 | 1277 | 60.8 | 1702 |
| - | VD40178IM | 40 | 20 | 178 | 25.2 | 53.4 | 1346 | 71.2 | 1794 |
| - | VD40203IM | 40 | 20 | 203 | 22.7 | 60.9 | 1382 | 81.2 | 1843 |
| - | VD40254IM | 40 | 20 | 254 | 17 | 76.2 | 1295 | 101.6 | 1727 |
| - | VD40305IM | 40 | 20 | 305 | 14.8 | 91.5 | 1354 | 122 | 1806 |
| - | VD50064IM | 50 | 25 | 64 | 156 | 19.2 | 2995 | 25.6 | 3994 |
| - | VD50076IM | 50 | 25 | 76 | 125 | 22.8 | 2850 | 30.4 | 3800 |
| - | VD50089IM | 50 | 25 | 89 | 109 | 26.7 | 2910 | 35.6 | 3880 |
| - | VD50102IM | 50 | 25 | 102 | 94 | 30.6 | 2876 | 40.8 | 3835 |
| - | VD50115IM | 50 | 25 | 115 | 81 | 34.5 | 2795 | 46 | 3726 |
| - | VD50127IM | 50 | 25 | 127 | 71 | 38.1 | 2705 | 50.8 | 3607 |
| - | VD50139IM | 50 | 25 | 139 | 66.5 | 41.7 | 2773 | 55.6 | 3697 |
| - | VD50152IM | 50 | 25 | 152 | 60 | 45.6 | 2736 | 60.8 | 3648 |
| - | VD50178IM | 50 | 25 | 178 | 52 | 53.4 | 2777 | 71.2 | 3702 |
| - | VD50203IM | 50 | 25 | 203 | 44 | 60.9 | 2680 | 81.2 | 3573 |
| - | VD50229IM | 50 | 25 | 229 | 38.2 | 68.7 | 2624 | 91.6 | 3499 |
| - | VD50254IM | 50 | 25 | 254 | 35 | 76.2 | 2667 | 101.6 | 3556 |
| - | VD50305IM | 50 | 25 | 305 | 28.5 | 91.5 | 2608 | 122 | 3477 |
| - | VD63076IM | 63 | 38 | 76 | 189 | 22.8 | 4309 | 30.4 | 5746 |
| - | VD63089IM | 63 | 38 | 89 | 158 | 26.7 | 4219 | 35.6 | 5625 |
| - | VD63102IM | 63 | 38 | 102 | 131 | 30.6 | 4009 | 40.8 | 5345 |
| - | VD63115IM | 63 | 38 | 115 | 116 | 34.5 | 4002 | 46 | 5336 |
| - | VD63127IM | 63 | 38 | 127 | 103 | 38.1 | 3924 | 50.8 | 5232 |
| - | VD63152IM | 63 | 38 | 152 | 84.3 | 45.6 | 3844 | 60.8 | 5125 |
| - | VD63178IM | 63 | 38 | 178 | 71.5 | 53.4 | 3818 | 71.2 | 5091 |
| - | VD63203IM | 63 | 38 | 203 | 61.7 | 60.9 | 3758 | 81.2 | 5010 |
| - | VD63254IM | 63 | 38 | 254 | 47 | 76.2 | 3581 | 101.6 | 4775 |
| - | VD63305IM | 63 | 38 | 305 | 38.2 | 91.5 | 3495 | 122 | 4660 |
