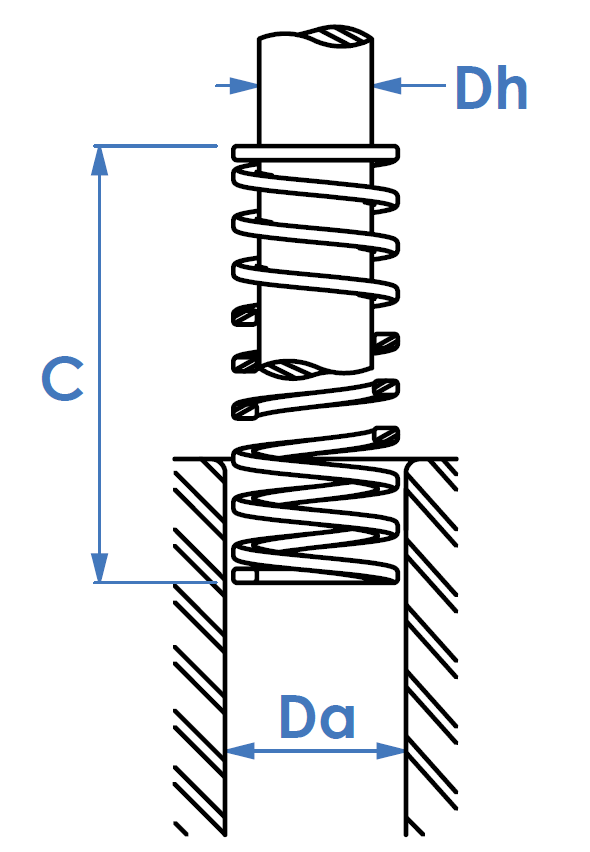

Da - Diâmetro do alojamento onde a mola será utilizada.
Dh - Diâmetro máximo da haste utilizada para guiar a mola.
N/mm - Carga em Nf por mm comprimido.
CM - Curso máximo para funcionamento.
C - Comprimento total.
CS - Curso sugerido para longa duração.
Nota: 1 N = 0,102 kgf, simplificando tirar 1 casa decimal para transformar em Kgf ou dividir por 10.
Filtrar por:

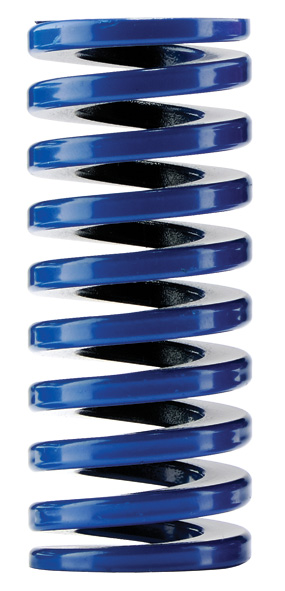

MOLA TIPO ISO 10243 - COR AZUL - CARGA MÉDIA
| Código | Da | Dh | C | N/ mm |
CS=25% CURSO SUGERIDO Curso mm |
CS=25% CURSO SUGERIDO Carga N |
CM = 37,5% CURSO MÁXIMO Curso mm |
CM = 37,5% CURSO MÁXIMO Carga N |
|---|---|---|---|---|---|---|---|---|
| AZ10025IM | 10 | 5 | 25 | 16 | 6.3 | 100 | 9.4 | 150 |
| AZ10032IM | 10 | 5 | 32 | 13 | 8 | 104 | 12 | 156 |
| AZ10038IM | 10 | 5 | 38 | 11.9 | 9.5 | 113 | 14.3 | 170 |
| AZ10044IM | 10 | 5 | 44 | 10.3 | 11 | 113 | 16.5 | 170 |
| AZ10051IM | 10 | 5 | 51 | 8.9 | 12.8 | 113 | 19.1 | 170 |
| AZ10064IM | 10 | 5 | 64 | 7.5 | 16 | 120 | 24 | 180 |
| AZ10076IM | 10 | 5 | 76 | 5.3 | 19 | 101 | 28.5 | 151 |
| AZ10305IM | 10 | 5 | 305 | 1.6 | 76.3 | 122 | 114.4 | 183 |
| AZ13025IM | 12.5 | 6.3 | 25 | 30 | 6.3 | 188 | 9.4 | 281 |
| AZ13032IM | 12.5 | 6.3 | 32 | 24.8 | 8 | 198 | 12 | 298 |
| AZ13038IM | 12.5 | 6.3 | 38 | 21.4 | 9.5 | 203 | 14.3 | 305 |
| AZ13044IM | 12.5 | 6.3 | 44 | 18.5 | 11 | 204 | 16.5 | 305 |
| AZ13051IM | 12.5 | 6.3 | 51 | 15.5 | 12.8 | 198 | 19.1 | 296 |
| AZ13064IM | 12.5 | 6.3 | 64 | 12.1 | 16 | 194 | 24 | 290 |
| AZ13076IM | 12.5 | 6.3 | 76 | 10.2 | 19 | 194 | 28.5 | 291 |
| AZ13089IM | 12.5 | 6.3 | 89 | 8.4 | 22.3 | 187 | 33.4 | 280 |
| AZ13102IM | 12.5 | 6.3 | 102 | 7.1 | 25.5 | 181 | 38.3 | 272 |
| AZ13305IM | 12.5 | 6.3 | 305 | 2.1 | 76.3 | 160 | 114.4 | 240 |
| AZ16025IM | 16 | 8 | 25 | 49.4 | 6.3 | 309 | 9.4 | 463 |
| AZ16032IM | 16 | 8 | 32 | 37.1 | 8 | 297 | 12 | 445 |
| AZ16038IM | 16 | 8 | 38 | 33.9 | 9.5 | 322 | 14.3 | 483 |
| AZ16044IM | 16 | 8 | 44 | 30 | 11 | 330 | 16.5 | 495 |
| AZ16051IM | 16 | 8 | 51 | 26.4 | 12.8 | 337 | 19.1 | 505 |
| AZ16064IM | 16 | 8 | 64 | 20.5 | 16 | 328 | 24 | 492 |
| AZ16076IM | 16 | 8 | 76 | 17.8 | 19 | 338 | 28.5 | 507 |
| AZ16089IM | 16 | 8 | 89 | 15.2 | 22.3 | 338 | 33.4 | 507 |
| AZ16102IM | 16 | 8 | 102 | 13.5 | 25.5 | 344 | 38.3 | 516 |
| AZ16115IM | 16 | 8 | 115 | 12 | 28.8 | 345 | 43.1 | 518 |
| AZ16305IM | 16 | 8 | 305 | 4.8 | 76.3 | 366 | 114.4 | 549 |
| AZ20025IM | 20 | 10 | 25 | 98 | 6.3 | 613 | 9.4 | 919 |
| AZ20032IM | 20 | 10 | 32 | 72.6 | 8 | 581 | 12 | 871 |
| AZ20038IM | 20 | 10 | 38 | 56 | 9.5 | 532 | 14.3 | 798 |
| AZ20044IM | 20 | 10 | 44 | 47.5 | 11 | 523 | 16.5 | 784 |
| AZ20051IM | 20 | 10 | 51 | 41.7 | 12.8 | 532 | 19.1 | 798 |
| AZ20064IM | 20 | 10 | 64 | 32.3 | 16 | 517 | 24 | 775 |
| AZ20076IM | 20 | 10 | 76 | 25.1 | 19 | 477 | 28.5 | 715 |
| AZ20089IM | 20 | 10 | 89 | 22 | 22.3 | 490 | 33.4 | 734 |
| AZ20102IM | 20 | 10 | 102 | 19.8 | 25.5 | 505 | 38.3 | 757 |
| AZ20115IM | 20 | 10 | 115 | 18.1 | 28.8 | 520 | 43.1 | 781 |
| AZ20127IM | 20 | 10 | 127 | 16.6 | 31.8 | 527 | 47.6 | 791 |
| AZ20139IM | 20 | 10 | 139 | 15.1 | 34.8 | 525 | 52.1 | 787 |
| AZ20152IM | 20 | 10 | 152 | 13.2 | 38 | 502 | 57 | 752 |
| AZ20305IM | 20 | 10 | 305 | 6.1 | 76.3 | 465 | 114.4 | 698 |
| AZ25025IM | 25 | 12.5 | 25 | 147 | 6.3 | 919 | 9.4 | 1378 |
| AZ25032IM | 25 | 12.5 | 32 | 118 | 8 | 944 | 12 | 1416 |
| AZ25038IM | 25 | 12.5 | 38 | 93 | 9.5 | 884 | 14.3 | 1325 |
| AZ25044IM | 25 | 12.5 | 44 | 80.8 | 11 | 889 | 16.5 | 1333 |
| AZ25051IM | 25 | 12.5 | 51 | 68.6 | 12.8 | 875 | 19.1 | 1312 |
| AZ25064IM | 25 | 12.5 | 64 | 53 | 16 | 848 | 24 | 1272 |
| AZ25076IM | 25 | 12.5 | 76 | 43.2 | 19 | 821 | 28.5 | 1231 |
| AZ25089IM | 25 | 12.5 | 89 | 38.2 | 22.3 | 850 | 33.4 | 1275 |
| AZ25102IM | 25 | 12.5 | 102 | 33 | 25.5 | 842 | 38.3 | 1262 |
| AZ25115IM | 25 | 12.5 | 115 | 28 | 28.8 | 805 | 43.1 | 1208 |
| AZ25127IM | 25 | 12.5 | 127 | 25.9 | 31.8 | 822 | 47.6 | 1233 |
| AZ25139IM | 25 | 12.5 | 139 | 23.2 | 34.8 | 806 | 52.1 | 1209 |
| AZ25152IM | 25 | 12.5 | 152 | 20.8 | 38 | 790 | 57 | 1186 |
| AZ25178IM | 25 | 12.5 | 178 | 17.8 | 44.5 | 792 | 66.8 | 1188 |
| AZ25203IM | 25 | 12.5 | 203 | 15.8 | 50.8 | 802 | 76.1 | 1203 |
| AZ25305IM | 25 | 12.5 | 305 | 10.2 | 76.3 | 778 | 114.4 | 1167 |
| AZ32038IM | 32 | 16 | 38 | 185 | 9.5 | 1758 | 14.3 | 2636 |
| AZ32044IM | 32 | 16 | 44 | 158 | 11 | 1738 | 16.5 | 2607 |
| AZ32051IM | 32 | 16 | 51 | 134 | 12.8 | 1709 | 19.1 | 2563 |
| AZ32064IM | 32 | 16 | 64 | 99 | 16 | 1584 | 24 | 2376 |
| AZ32076IM | 32 | 16 | 76 | 80.5 | 19 | 1530 | 28.5 | 2294 |
| AZ32089IM | 32 | 16 | 89 | 69.1 | 22.3 | 1537 | 33.4 | 2306 |
| AZ32102IM | 32 | 16 | 102 | 58.8 | 25.5 | 1499 | 38.3 | 2249 |
| AZ32115IM | 32 | 16 | 115 | 51.5 | 28.8 | 1481 | 43.1 | 2221 |
| AZ32127IM | 32 | 16 | 127 | 44.8 | 31.8 | 1422 | 47.6 | 2134 |
| AZ32139IM | 32 | 16 | 139 | 42.3 | 34.8 | 1470 | 52.1 | 2205 |
| AZ32152IM | 32 | 16 | 152 | 37.8 | 38 | 1436 | 57 | 2155 |
| AZ32178IM | 32 | 16 | 178 | 32.5 | 44.5 | 1446 | 66.8 | 2169 |
| AZ32203IM | 32 | 16 | 203 | 28.9 | 50.8 | 1467 | 76.1 | 2200 |
| AZ32254IM | 32 | 16 | 254 | 21.4 | 63.5 | 1359 | 95.3 | 2038 |
| AZ32305IM | 32 | 16 | 305 | 18.3 | 76.3 | 1395 | 114.4 | 2093 |
| AZ40051IM | 40 | 20 | 51 | 181.6 | 12.8 | 2315 | 19.1 | 3473 |
| AZ40064IM | 40 | 20 | 64 | 140 | 16 | 2240 | 24 | 3360 |
| AZ40076IM | 40 | 20 | 76 | 108 | 19 | 2052 | 28.5 | 3078 |
| AZ40089IM | 40 | 20 | 89 | 90.7 | 22.3 | 2018 | 33.4 | 3027 |
| AZ40102IM | 40 | 20 | 102 | 81 | 25.5 | 2066 | 38.3 | 3098 |
| AZ40115IM | 40 | 20 | 115 | 71.8 | 28.8 | 2064 | 43.1 | 3096 |
| AZ40127IM | 40 | 20 | 127 | 62.7 | 31.8 | 1991 | 47.6 | 2986 |
| AZ40139IM | 40 | 20 | 139 | 57.5 | 34.8 | 1998 | 52.1 | 2997 |
| AZ40152IM | 40 | 20 | 152 | 51.6 | 38 | 1961 | 57 | 2941 |
| AZ40160IM | 40 | 20 | 160 | 47.5 | 40 | 1900 | 60 | 2850 |
| AZ40178IM | 40 | 20 | 178 | 44.1 | 44.5 | 1962 | 66.8 | 2944 |
| AZ40203IM | 40 | 20 | 203 | 36.7 | 50.8 | 1863 | 76.1 | 2794 |
| AZ40254IM | 40 | 20 | 254 | 30.1 | 63.5 | 1911 | 95.3 | 2867 |
| AZ40305IM | 40 | 20 | 305 | 24.6 | 76.3 | 1876 | 114.4 | 2814 |
| AZ50064IM | 50 | 25 | 64 | 209 | 16 | 3344 | 24 | 5016 |
| AZ50076IM | 50 | 25 | 76 | 168 | 19 | 3192 | 28.5 | 4788 |
| AZ50089IM | 50 | 25 | 89 | 140 | 22.3 | 3115 | 33.4 | 4673 |
| AZ50102IM | 50 | 25 | 102 | 119 | 25.5 | 3035 | 38.3 | 4552 |
| AZ50115IM | 50 | 25 | 115 | 106 | 28.8 | 3048 | 43.1 | 4571 |
| AZ50127IM | 50 | 25 | 127 | 97 | 31.8 | 3080 | 47.6 | 4620 |
| AZ50139IM | 50 | 25 | 139 | 87 | 34.8 | 3023 | 52.1 | 4535 |
| AZ50152IM | 50 | 25 | 152 | 80 | 38 | 3040 | 57 | 4560 |
| AZ50178IM | 50 | 25 | 178 | 69.5 | 44.5 | 3093 | 66.8 | 4639 |
| AZ50203IM | 50 | 25 | 203 | 59.8 | 50.8 | 3035 | 76.1 | 4552 |
| AZ50229IM | 50 | 25 | 229 | 50.9 | 57.3 | 2914 | 85.9 | 4371 |
| AZ50254IM | 50 | 25 | 254 | 43.9 | 63.5 | 2788 | 95.3 | 4181 |
| AZ50305IM | 50 | 25 | 305 | 38.6 | 76.3 | 2943 | 114.4 | 4415 |
| AZ63076IM | 63 | 38 | 76 | 312 | 19 | 5928 | 28.5 | 8892 |
| AZ63089IM | 63 | 38 | 89 | 260 | 22.3 | 5785 | 33.4 | 8678 |
| AZ63102IM | 63 | 38 | 102 | 221 | 25.5 | 5636 | 38.3 | 8453 |
| AZ63115IM | 63 | 38 | 115 | 187 | 28.8 | 5376 | 43.1 | 8064 |
| AZ63127IM | 63 | 38 | 127 | 168 | 31.8 | 5334 | 47.6 | 8001 |
| AZ63152IM | 63 | 38 | 152 | 136 | 38 | 5168 | 57 | 7752 |
| AZ63160IM | 63 | 38 | 160 | 128 | 40 | 5120 | 60 | 7680 |
| AZ63178IM | 63 | 38 | 178 | 114 | 44.5 | 5073 | 66.8 | 7610 |
| AZ63203IM | 63 | 38 | 203 | 100 | 50.8 | 5075 | 76.1 | 7613 |
| AZ63229IM | 63 | 38 | 229 | 89.2 | 57.3 | 5107 | 85.9 | 7660 |
| AZ63254IM | 63 | 38 | 254 | 78.4 | 63.5 | 4978 | 95.3 | 7468 |
| AZ63305IM | 63 | 38 | 305 | 64.7 | 76.3 | 4933 | 114.4 | 7400 |
| AZ63315IM | 63 | 38 | 315 | 62.8 | 78.8 | 4946 | 118.1 | 7418 |
