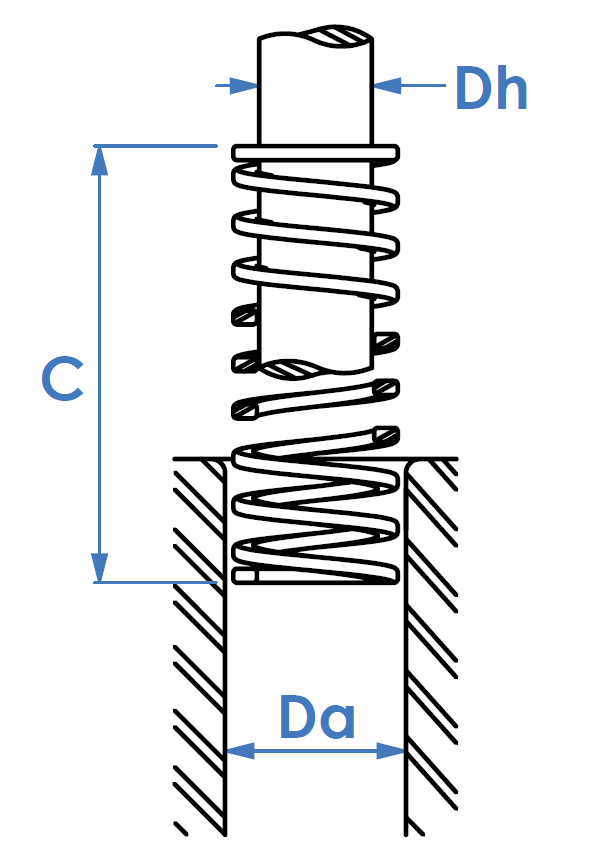

Da - Diâmetro do alojamento onde a mola será utilizada.
Dh - Diâmetro máximo da haste utilizada para guiar a mola.
N/mm - Carga em Nf por mm comprimido.
CM - Curso máximo para funcionamento.
C - Comprimento total.
CS - Curso sugerido para longa duração.
Nota: 1 N = 0,102 kgf, simplificando tirar 1 casa decimal para transformar em Kgf ou dividir por 10.
Filtrar por:

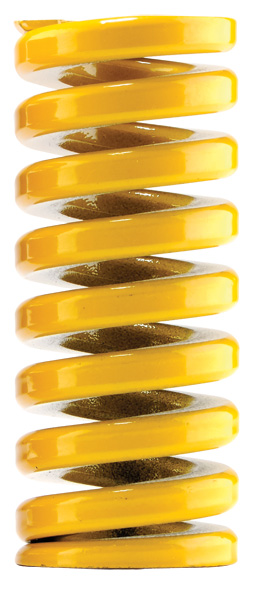

MOLA TIPO ISO 10243 - COR AMARELA - CARGA EXTRA PESADA
| Desenho 3D | CÓDIGO | Da | Dh | C | N/ mm |
CS=17% CURSO SUGERIDO Curso mm |
CS=17% CURSO SUGERIDO Carga N |
CM = 25% CURSO MÁXIMO Curso mm |
CM = 25% CURSO MÁXIMO Carga N |
|---|---|---|---|---|---|---|---|---|---|
| - | AM10025IM | 10 | 5 | 25 | 36.8 | 4.3 | 156 | 6.3 | 230 |
| - | AM10032IM | 10 | 5 | 32 | 27.9 | 5.4 | 152 | 8 | 223 |
| - | AM10038IM | 10 | 5 | 38 | 23.7 | 6.5 | 153 | 9.5 | 225 |
| - | AM10044IM | 10 | 5 | 44 | 19.2 | 7.5 | 144 | 11 | 211 |
| - | AM10051IM | 10 | 5 | 51 | 16.5 | 8.7 | 143 | 12.8 | 210 |
| - | AM10064IM | 10 | 5 | 64 | 13.2 | 10.9 | 144 | 16 | 211 |
| - | AM10076IM | 10 | 5 | 76 | 10.9 | 12.9 | 141 | 19 | 207 |
| - | AM10305IM | 10 | 5 | 305 | 2.6 | 51.9 | 135 | 76.3 | 198 |
| - | AM13025IM | 12.5 | 6.3 | 25 | 58.5 | 4.3 | 249 | 6.3 | 366 |
| - | AM13032IM | 12.5 | 6.3 | 32 | 43.9 | 5.4 | 239 | 8 | 351 |
| - | AM13038IM | 12.5 | 6.3 | 38 | 36 | 6.5 | 233 | 9.5 | 342 |
| - | AM13044IM | 12.5 | 6.3 | 44 | 30.3 | 7.5 | 227 | 11 | 333 |
| - | AM13051IM | 12.5 | 6.3 | 51 | 26.2 | 8.7 | 227 | 12.8 | 334 |
| - | AM13064IM | 12.5 | 6.3 | 64 | 21.2 | 10.9 | 231 | 16 | 339 |
| - | AM13076IM | 12.5 | 6.3 | 76 | 17.1 | 12.9 | 221 | 19 | 325 |
| - | AM13089IM | 12.5 | 6.3 | 89 | 14.5 | 15.1 | 219 | 22.3 | 323 |
| - | AM13102IM | 12.5 | 6.3 | 102 | 12.5 | 17.3 | 217 | 25.5 | 319 |
| - | AM13305IM | 12.5 | 6.3 | 305 | 4.3 | 51.9 | 223 | 76.3 | 328 |
| - | AM16025IM | 16 | 8 | 25 | 118 | 4.3 | 502 | 6.3 | 738 |
| - | AM16032IM | 16 | 8 | 32 | 89 | 5.4 | 484 | 8 | 712 |
| - | AM16038IM | 16 | 8 | 38 | 72.1 | 6.5 | 466 | 9.5 | 685 |
| - | AM16044IM | 16 | 8 | 44 | 60.9 | 7.5 | 456 | 11 | 670 |
| - | AM16051IM | 16 | 8 | 51 | 52.3 | 8.7 | 453 | 12.8 | 667 |
| - | AM16064IM | 16 | 8 | 64 | 41.2 | 10.9 | 448 | 16 | 659 |
| - | AM16076IM | 16 | 8 | 76 | 34.1 | 12.9 | 441 | 19 | 648 |
| - | AM16089IM | 16 | 8 | 89 | 29.5 | 15.1 | 446 | 22.3 | 656 |
| - | AM16102IM | 16 | 8 | 102 | 25.6 | 17.3 | 444 | 25.5 | 653 |
| - | AM16115IM | 16 | 8 | 115 | 22.8 | 19.6 | 446 | 28.8 | 656 |
| - | AM16305IM | 16 | 8 | 305 | 8.4 | 51.9 | 436 | 76.3 | 641 |
| - | AM20025IM | 20 | 10 | 25 | 293 | 4.3 | 1245 | 6.3 | 1831 |
| - | AM20032IM | 20 | 10 | 32 | 224 | 5.4 | 1219 | 8 | 1792 |
| - | AM20038IM | 20 | 10 | 38 | 177 | 6.5 | 1143 | 9.5 | 1682 |
| - | AM20044IM | 20 | 10 | 44 | 149 | 7.5 | 1115 | 11 | 1639 |
| - | AM20051IM | 20 | 10 | 51 | 128 | 8.7 | 1110 | 12.8 | 1632 |
| - | AM20064IM | 20 | 10 | 64 | 99 | 10.9 | 1077 | 16 | 1584 |
| - | AM20076IM | 20 | 10 | 76 | 81.7 | 12.9 | 1056 | 19 | 1552 |
| - | AM20089IM | 20 | 10 | 89 | 69.5 | 15.1 | 1052 | 22.3 | 1546 |
| - | AM20102IM | 20 | 10 | 102 | 60.6 | 17.3 | 1051 | 25.5 | 1545 |
| - | AM20115IM | 20 | 10 | 115 | 53 | 19.6 | 1036 | 28.8 | 1524 |
| - | AM20127IM | 20 | 10 | 127 | 47.5 | 21.6 | 1026 | 31.8 | 1508 |
| - | AM20139IM | 20 | 10 | 139 | 43 | 23.6 | 1016 | 34.8 | 1494 |
| - | AM20152IM | 20 | 10 | 152 | 39 | 25.8 | 1008 | 38 | 1482 |
| - | AM20305IM | 20 | 10 | 305 | 21.2 | 51.9 | 1099 | 76.3 | 1617 |
| - | AM25025IM | 25 | 12.5 | 25 | 488 | 4.3 | 2098 | 6.3 | 3074 |
| - | AM25032IM | 25 | 12.5 | 32 | 374.4 | 5.4 | 2037 | 8 | 2995 |
| - | AM25038IM | 25 | 12.5 | 38 | 346 | 6.5 | 2235 | 9.5 | 3287 |
| - | AM25044IM | 25 | 12.5 | 44 | 244 | 7.5 | 1825 | 11 | 2684 |
| - | AM25051IM | 25 | 12.5 | 51 | 207.5 | 8.7 | 1799 | 12.8 | 2646 |
| - | AM25064IM | 25 | 12.5 | 64 | 161 | 10.9 | 1752 | 16 | 2576 |
| - | AM25076IM | 25 | 12.5 | 76 | 130.8 | 12.9 | 1690 | 19 | 2485 |
| - | AM25089IM | 25 | 12.5 | 89 | 110.5 | 15.1 | 1672 | 22.3 | 2459 |
| - | AM25102IM | 25 | 12.5 | 102 | 96.3 | 17.3 | 1670 | 25.5 | 2456 |
| - | AM25115IM | 25 | 12.5 | 115 | 85.7 | 19.6 | 1675 | 28.8 | 2464 |
| - | AM25127IM | 25 | 12.5 | 127 | 76.3 | 21.6 | 1647 | 31.8 | 2423 |
| - | AM25139IM | 25 | 12.5 | 139 | 69.5 | 23.6 | 1642 | 34.8 | 2415 |
| - | AM25152IM | 25 | 12.5 | 152 | 63.5 | 25.8 | 1641 | 38 | 2413 |
| - | AM25178IM | 25 | 12.5 | 178 | 53.9 | 30.3 | 1631 | 44.5 | 2399 |
| - | AM25203IM | 25 | 12.5 | 203 | 47 | 34.5 | 1622 | 50.8 | 2385 |
| - | AM25305IM | 25 | 12.5 | 305 | 30.9 | 51.9 | 1602 | 76.3 | 2356 |
| - | AM32038IM | 32 | 16 | 38 | 528.2 | 6.5 | 3412 | 9.5 | 5018 |
| - | AM32044IM | 32 | 16 | 44 | 424.4 | 7.5 | 3175 | 11 | 4668 |
| - | AM32051IM | 32 | 16 | 51 | 353 | 8.7 | 3061 | 12.8 | 4501 |
| - | AM32064IM | 32 | 16 | 64 | 269.2 | 10.9 | 2929 | 16 | 4307 |
| - | AM32076IM | 32 | 16 | 76 | 218.5 | 12.9 | 2823 | 19 | 4152 |
| - | AM32089IM | 32 | 16 | 89 | 180.3 | 15.1 | 2728 | 22.3 | 4012 |
| - | AM32102IM | 32 | 16 | 102 | 155 | 17.3 | 2688 | 25.5 | 3953 |
| - | AM32115IM | 32 | 16 | 115 | 140 | 19.6 | 2737 | 28.8 | 4025 |
| - | AM32127IM | 32 | 16 | 127 | 124 | 21.6 | 2677 | 31.8 | 3937 |
| - | AM32139IM | 32 | 16 | 139 | 112 | 23.6 | 2647 | 34.8 | 3898 |
| - | AM32152IM | 32 | 16 | 152 | 102 | 25.8 | 2636 | 38 | 3876 |
| - | AM32178IM | 32 | 16 | 178 | 88.2 | 30.3 | 2669 | 44.5 | 3925 |
| - | AM32203IM | 32 | 16 | 203 | 76 | 34.5 | 2623 | 50.8 | 3857 |
| - | AM32254IM | 32 | 16 | 254 | 60.8 | 43.2 | 2625 | 63.5 | 3861 |
| - | AM32305IM | 32 | 16 | 305 | 49 | 51.9 | 2541 | 76.3 | 3736 |
| - | AM40051IM | 40 | 20 | 51 | 628 | 8.7 | 5445 | 12.8 | 8007 |
| - | AM40064IM | 40 | 20 | 64 | 487 | 10.9 | 5299 | 16 | 7792 |
| - | AM40076IM | 40 | 20 | 76 | 379 | 12.9 | 4897 | 19 | 7201 |
| - | AM40089IM | 40 | 20 | 89 | 321 | 15.1 | 4857 | 22.3 | 7142 |
| - | AM40102IM | 40 | 20 | 102 | 281 | 17.3 | 4873 | 25.5 | 7166 |
| - | AM40115IM | 40 | 20 | 115 | 245 | 19.6 | 4790 | 28.8 | 7044 |
| - | AM40127IM | 40 | 20 | 127 | 221 | 21.6 | 4771 | 31.8 | 7017 |
| - | AM40139IM | 40 | 20 | 139 | 195 | 23.6 | 4602 | 34.8 | 6786 |
| - | AM40152IM | 40 | 20 | 152 | 168 | 25.8 | 4341 | 38 | 6384 |
| - | AM40178IM | 40 | 20 | 178 | 150 | 30.3 | 4545 | 44.5 | 6675 |
| - | AM40203IM | 40 | 20 | 203 | 132 | 34.5 | 4555 | 50.8 | 6699 |
| - | AM40254IM | 40 | 20 | 254 | 107 | 43.2 | 4620 | 63.5 | 6795 |
| - | AM40305IM | 40 | 20 | 305 | 87.8 | 51.9 | 4552 | 76.3 | 6695 |
| - | AM50064IM | 50 | 25 | 64 | 709 | 10.9 | 7714 | 16 | 11344 |
| - | AM50076IM | 50 | 25 | 76 | 572 | 12.9 | 7390 | 19 | 10868 |
| - | AM50089IM | 50 | 25 | 89 | 475 | 15.1 | 7187 | 22.3 | 10569 |
| - | AM50102IM | 50 | 25 | 102 | 405 | 17.3 | 7023 | 25.5 | 10328 |
| - | AM50115IM | 50 | 25 | 115 | 352 | 19.6 | 6882 | 28.8 | 10120 |
| - | AM50127IM | 50 | 25 | 127 | 316 | 21.6 | 6822 | 31.8 | 10033 |
| - | AM50139IM | 50 | 25 | 139 | 289 | 23.6 | 6829 | 34.8 | 10043 |
| - | AM50152IM | 50 | 25 | 152 | 239 | 25.8 | 6176 | 38 | 9082 |
| - | AM50178IM | 50 | 25 | 178 | 216 | 30.3 | 6536 | 44.5 | 9612 |
| - | AM50203IM | 50 | 25 | 203 | 187 | 34.5 | 6453 | 50.8 | 9490 |
| - | AM50254IM | 50 | 25 | 254 | 153 | 43.2 | 6607 | 63.5 | 9716 |
| - | AM50305IM | 50 | 25 | 305 | 127 | 51.9 | 6585 | 76.3 | 9684 |
| - | AM63076IM | 63 | 38 | 76 | 842 | 12.9 | 10879 | 19 | 15998 |
| - | AM63089IM | 63 | 38 | 89 | 726 | 15.1 | 10984 | 22.3 | 16154 |
| - | AM63102IM | 63 | 38 | 102 | 656 | 17.3 | 11375 | 25.5 | 16728 |
| - | AM63115IM | 63 | 38 | 115 | 534 | 19.6 | 10440 | 28.8 | 15353 |
| - | AM63127IM | 63 | 38 | 127 | 480 | 21.6 | 10363 | 31.8 | 15240 |
| - | AM63152IM | 63 | 38 | 152 | 396 | 25.8 | 10233 | 38 | 15048 |
| - | AM63178IM | 63 | 38 | 178 | 335 | 30.3 | 10137 | 44.5 | 14908 |
| - | AM63203IM | 63 | 38 | 203 | 297 | 34.5 | 10249 | 50.8 | 15073 |
| - | AM63254IM | 63 | 38 | 254 | 235 | 43.2 | 10147 | 63.5 | 14923 |
| - | AM63305IM | 63 | 38 | 305 | 194 | 51.9 | 10059 | 76.3 | 14793 |
