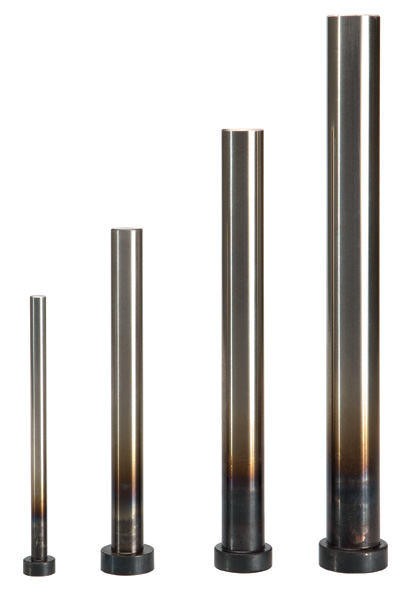

PINO EXTRATOR TIPO B DIN 1530

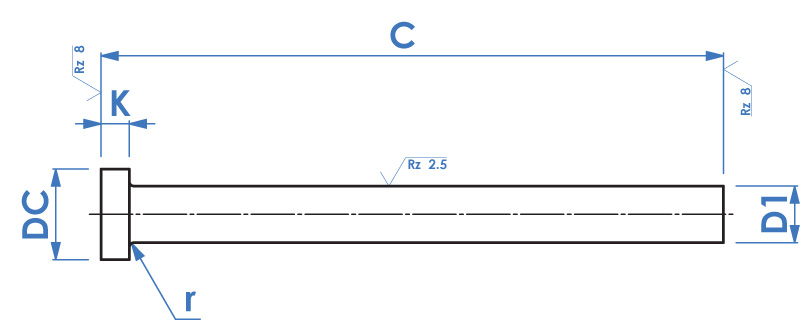

Desenho 3D CÓDIGO D1
g6		 DC
-0,2		 K
-0,05		 r C
+2
PB01,5100 1.5 3 1.5 0.2 100
PB01,5125 1.5 3 1.5 0.2 125
PB01,5160 1.5 3 1.5 0.2 160
- PB01,5200 1.5 3 1.5 0.2 200
- PB01,5250 1.5 3 1.5 0.2 250
- PB02,0100 2 4 2 0.2 100
- PB02,0125 2 4 2 0.2 125
- PB02,0160 2 4 2 0.2 160
- PB02,0200 2 4 2 0.2 200
- PB02,0250 2 4 2 0.2 250
- PB02,0315 2 4 2 0.2 315
- PB02,0400 2 4 2 0.2 400
- PB02,5100 2.5 5 2 0.3 100
- PB02,5125 2.5 5 2 0.3 125
- PB02,5160 2.5 5 2 0.3 160
- PB02,5200 2.5 5 2 0.3 200
- PB02,5250 2.5 5 2 0.3 250
- PB02,5315 2.5 5 2 0.3 315
- PB02,5400 2.5 5 2 0.3 400
- PB03,0100 3 6 3 0.3 100
- PB03,0125 3 6 3 0.3 125
- PB03,0160 3 6 3 0.3 160
- PB03,0200 3 6 3 0.3 200
- PB03,0250 3 6 3 0.3 250
- PB03,0315 3 6 3 0.3 315
- PB03,0400 3 6 3 0.3 400
- PB04,0100 4 8 3 0.3 100
- PB04,0125 4 8 3 0.3 125
- PB04,0160 4 8 3 0.3 160
- PB04,0200 4 8 3 0.3 200
- PB04,0250 4 8 3 0.3 250
- PB04,0315 4 8 3 0.3 315
- PB04,0400 4 8 3 0.3 400
- PB05,0100 5 10 3 0.3 100
- PB05,0125 5 10 3 0.3 125
- PB05,0160 5 10 3 0.3 160
- PB05,0200 5 10 3 0.3 200
- PB05,0250 5 10 3 0.3 250
- PB05,0315 5 10 3 0.3 315
- PB05,0400 5 10 3 0.3 400
- PB06,0100 6 12 5 0.5 100
- PB06,0125 6 12 5 0.5 125
- PB06,0160 6 12 5 0.5 160
- PB06,0200 6 12 5 0.5 200
- PB06,0250 6 12 5 0.5 250
- PB06,0315 6 12 5 0.5 315
- PB06,0400 6 12 5 0.5 400
- PB07,0100 7 12 5 0.5 100
- PB07,0125 7 12 5 0.5 125
- PB07,0160 7 12 5 0.5 160
- PB07,0200 7 12 5 0.5 200
- PB07,0250 7 12 5 0.5 250
- PB07,0315 7 12 5 0.5 315
- PB07,0400 7 12 5 0.5 400
- PB08,0100 8 14 5 0.5 100
- PB08,0125 8 14 5 0.5 125
- PB08,0160 8 14 5 0.5 160
- PB08,0200 8 14 5 0.5 200
- PB08,0250 8 14 5 0.5 250
- PB08,0315 8 14 5 0.5 315
- PB08,0400 8 14 5 0.5 400
- PB10,0100 10 16 5 0.5 100
- PB10,0125 10 16 5 0.5 125
- PB10,0160 10 16 5 0.5 160
- PB10,0200 10 16 5 0.5 200
- PB10,0250 10 16 5 0.5 250
- PB10,0315 10 16 5 0.5 315
- PB10,0400 10 16 5 0.5 400
- PB12,0100 12 18 7 0.8 100
- PB12,0125 12 18 7 0.8 125
- PB12,0160 12 18 7 0.8 160
- PB12,0200 12 18 7 0.8 200
- PB12,0250 12 18 7 0.8 250
- PB12,0315 12 18 7 0.8 315
- PB12,0400 12 18 7 0.8 400
- PB14,0100 14 22 7 0.8 100
- PB14,0125 14 22 7 0.8 125
- PB14,0160 14 22 7 0.8 160
- PB14,0200 14 22 7 0.8 200
- PB14,0250 14 22 7 0.8 250
- PB14,0315 14 22 7 0.8 315
- PB14,0400 14 22 7 0.8 400
- PB16,0100 16 22 7 0.8 100
- PB16,0125 16 22 7 0.8 125
- PB16,0160 16 22 7 0.8 160
- PB16,0200 16 22 7 0.8 200
- PB16,0250 16 22 7 0.8 250
- PB16,0315 16 22 7 0.8 315
- PB16,0400 16 22 7 0.8 400
- PB20,0100 20 26 8 1 100
- PB20,0125 20 26 8 1 125
- PB20,0160 20 26 8 1 160
- PB20,0200 20 26 8 1 200
- PB20,0250 20 26 8 1 250
- PB20,0315 20 26 8 1 315
- PB20,0400 20 26 8 1 400
Características
TÉCNICAS

São fabricados em aço WS (aço prata).
Corpo com têmpera total de 58-62 HRC.
Cabeça forjada com dureza de 45 ± 5 HRC.

Indicado para injeção de plástico e também para fabricação de pinos postiços.
