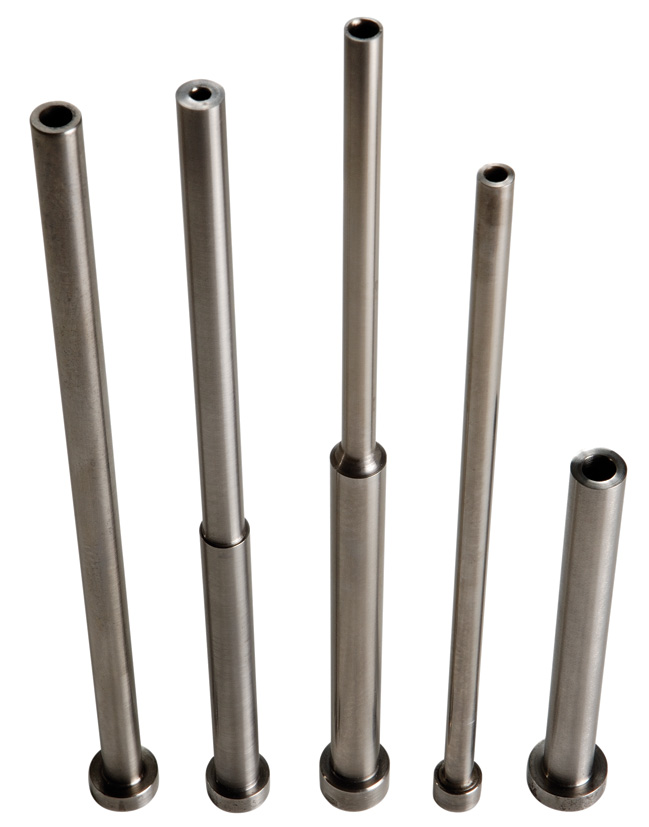

BUCHA EXTRATORA

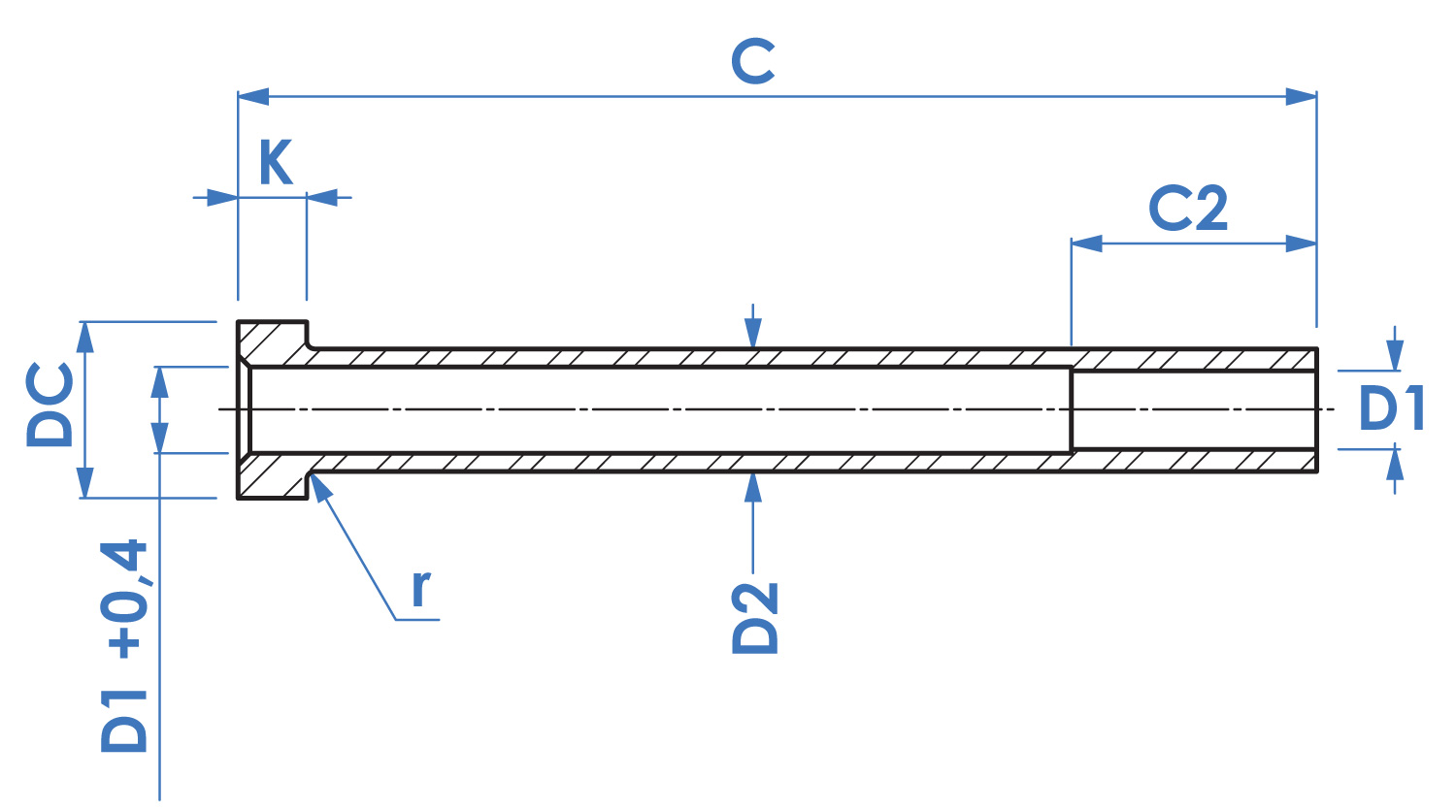

DESENHO 3D CÓDIGO D1
h7		 D2
g6		 DC
-0,2		 K
-0,05		 C2
1		 C
+3
BE02,004075 2 4 8 3 40 75
- BE02,004100 2 4 8 3 40 100
BE02,004125 2 4 8 3 40 125
- BE02,004150 2 4 8 3 40 150
- BE02,004175 2 4 8 3 40 175
- BE02,004200 2 4 8 3 40 200
- BE02,004225 2 4 8 3 40 225
- BE02,004250 2 4 8 3 40 250
BE02,505075 2.5 5 10 3 40 75
BE02,505100 2.5 5 10 3 40 100
BE02,505125 2.5 5 10 3 40 125
- BE02,505150 2.5 5 10 3 40 150
- BE02,505175 2.5 5 10 3 40 175
- BE02,505200 2.5 5 10 3 40 200
- BE02,505225 2.5 5 10 3 40 225
- BE02,505250 2.5 5 10 3 40 250
BE03,005075 3 5 10 3 40 75
BE03,005100 3 5 10 3 40 100
BE03,005125 3 5 10 3 40 125
- BE03,005150 3 5 10 3 40 150
- BE03,005175 3 5 10 3 40 175
- BE03,005200 3 5 10 3 40 200
- BE03,005225 3 5 10 3 40 225
- BE03,005250 3 5 10 3 40 250
- BE03,005275 3 5 10 3 40 275
- BE03,005300 3 5 10 3 40 300
- BE03,005325 3 5 10 3 40 325
- BE03,005350 3 5 10 3 40 350
- BE03,005375 3 5 10 3 40 375
- BE03,005400 3 5 10 3 40 400
BE03,505075 3.5 5 10 3 40 75
BE03,505100 3.5 5 10 3 40 100
BE03,505125 3.5 5 10 3 40 125
- BE03,505150 3.5 5 10 3 40 150
- BE03,505175 3.5 5 10 3 40 175
- BE03,505200 3.5 5 10 3 40 200
- BE03,505225 3.5 5 10 3 40 225
- BE03,505250 3.5 5 10 3 40 250
- BE03,505275 3.5 5 10 3 40 275
- BE03,505300 3.5 5 10 3 40 300
- BE03,505325 3.5 5 10 3 40 325
- BE03,505350 3.5 5 10 3 40 350
- BE03,505375 3.5 5 10 3 40 375
- BE03,505400 3.5 5 10 3 40 400
BE04,006075 4 6 12 5 40 75
BE04,006100 4 6 12 5 40 100
BE04,006125 4 6 12 5 40 125
- BE04,006150 4 6 12 5 40 150
- BE04,006175 4 6 12 5 40 175
BE04,006200 4 6 12 5 40 200
- BE04,006225 4 6 12 5 40 225
BE04,006250 4 6 12 5 40 250
- BE04,006275 4 6 12 5 40 275
- BE04,006300 4 6 12 5 40 300
- BE04,006325 4 6 12 5 40 325
- BE04,006350 4 6 12 5 40 350
- BE04,006375 4 6 12 5 40 375
- BE04,006400 4 6 12 5 40 400
BE05,008075 5 8 14 5 40 75
BE05,008100 5 8 14 5 40 100
BE05,008125 5 8 14 5 40 125
- BE05,008150 5 8 14 5 40 150
- BE05,008175 5 8 14 5 40 175
BE05,008200 5 8 14 5 40 200
- BE05,008225 5 8 14 5 40 225
BE05,008250 5 8 14 5 40 250
- BE05,008275 5 8 14 5 40 275
- BE05,008300 5 8 14 5 40 300
- BE05,008325 5 8 14 5 40 325
- BE05,008350 5 8 14 5 40 350
- BE05,008375 5 8 14 5 40 375
- BE05,008400 5 8 14 5 40 400
BE06,010075 6 10 16 5 40 75
BE06,010100 6 10 16 5 40 100
BE06,010125 6 10 16 5 40 125
- BE06,010150 6 10 16 5 40 150
- BE06,010175 6 10 16 5 40 175
BE06,010200 6 10 16 5 40 200
- BE06,010225 6 10 16 5 40 225
BE06,010250 6 10 16 5 40 250
- BE06,010275 6 10 16 5 40 275
- BE06,010300 6 10 16 5 40 300
- BE06,010325 6 10 16 5 40 325
- BE06,010350 6 10 16 5 40 350
- BE06,010375 6 10 16 5 40 375
BE06,010400 6 10 16 5 40 400
BE07,010075 7 10 16 5 40 75
BE07,010100 7 10 16 5 40 100
BE07,010125 7 10 16 5 40 125
- BE07,010150 7 10 16 5 40 150
- BE07,010175 7 10 16 5 40 175
BE07,010200 7 10 16 5 40 200
- BE07,010225 7 10 16 5 40 225
BE07,010250 7 10 16 5 40 250
- BE07,010275 7 10 16 5 40 275
- BE07,010300 7 10 16 5 40 300
- BE07,010325 7 10 16 5 40 325
- BE07,010350 7 10 16 5 40 350
- BE07,010375 7 10 16 5 40 375
BE07,010400 7 10 16 5 40 400
BE08,012075 8 12 18 7 40 75
BE08,012100 8 12 18 7 40 100
BE08,012125 8 12 18 7 40 125
- BE08,012150 8 12 18 7 40 150
- BE08,012175 8 12 18 7 40 175
BE08,012200 8 12 18 7 40 200
- BE08,012225 8 12 18 7 40 225
BE08,012250 8 12 18 7 40 250
- BE08,012275 8 12 18 7 40 275
- BE08,012300 8 12 18 7 40 300
- BE08,012325 8 12 18 7 40 325
- BE08,012350 8 12 18 7 40 350
- BE08,012375 8 12 18 7 40 375
BE08,012400 8 12 18 7 40 400
BE10,014100 10 14 22 7 40 100
BE10,014125 10 14 22 7 40 125
- BE10,014150 10 14 22 7 40 150
- BE10,014175 10 14 22 7 40 175
BE10,014200 10 14 22 7 40 200
- BE10,014225 10 14 22 7 40 225
BE10,014250 10 14 22 7 40 250
- BE10,014275 10 14 22 7 40 275
- BE10,014300 10 14 22 7 40 300
- BE10,014325 10 14 22 7 40 325
- BE10,014350 10 14 22 7 40 350
- BE10,014375 10 14 22 7 40 375
BE10,014400 10 14 22 7 40 400
BE12,016100 12 16 22 7 40 100
BE12,016125 12 16 22 7 40 125
- BE12,016150 12 16 22 7 40 150
- BE12,016175 12 16 22 7 40 175
BE12,016200 12 16 22 7 40 200
- BE12,016225 12 16 22 7 40 225
BE12,016250 12 16 22 7 40 250
- BE12,016275 12 16 22 7 40 275
- BE12,016300 12 16 22 7 40 300
- BE12,016325 12 16 22 7 40 325
- BE12,016350 12 16 22 7 40 350
- BE12,016375 12 16 22 7 40 375
BE12,016400 12 16 22 7 40 400
Características
TÉCNICAS

Aço: H13.
Dureza superficial: 65/70 HRC.
Caso deseje a peça no comprimento exato para montagem informar para cotação.
